Project Information

09_48

Builder-Owner
Peter Bischof

Location
Mellau

Completion
2012

Project facts
n.b.ar. 278,30 m² (ohne Stadel), GFA 467,07 m², (ohne Stadel)
GBV 1.047,42 m³ (ohne Stadel)
Energy 42 kWh/m²a

Rights
Text Hermann Kaufmann + Partner ZT GmbH,
Translation Bronwen Rolls
, Norman Radon

Übermellen, Mellau

Maintaining the integrity of an alpine hamlet with sympathetic contemporary renovations.

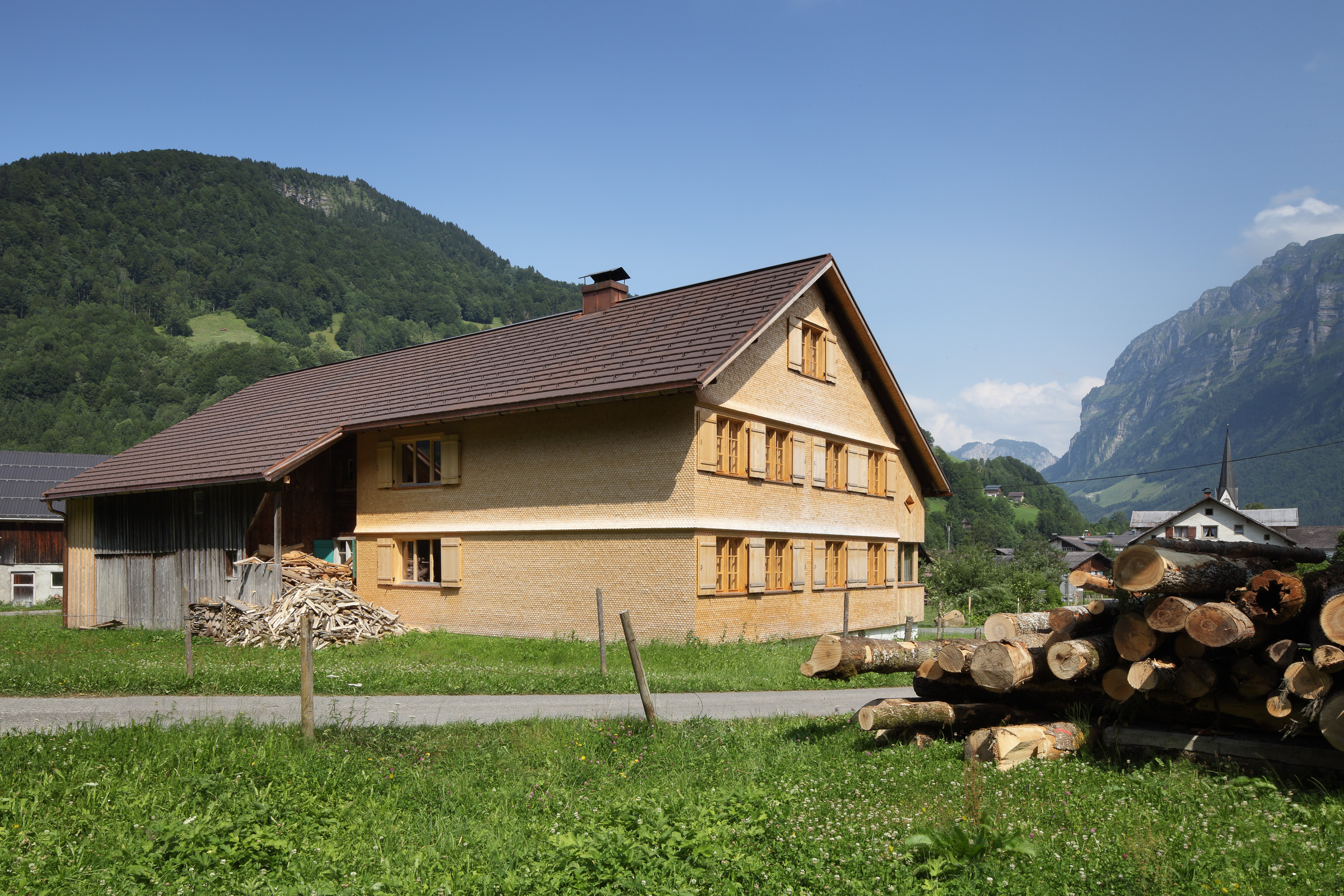

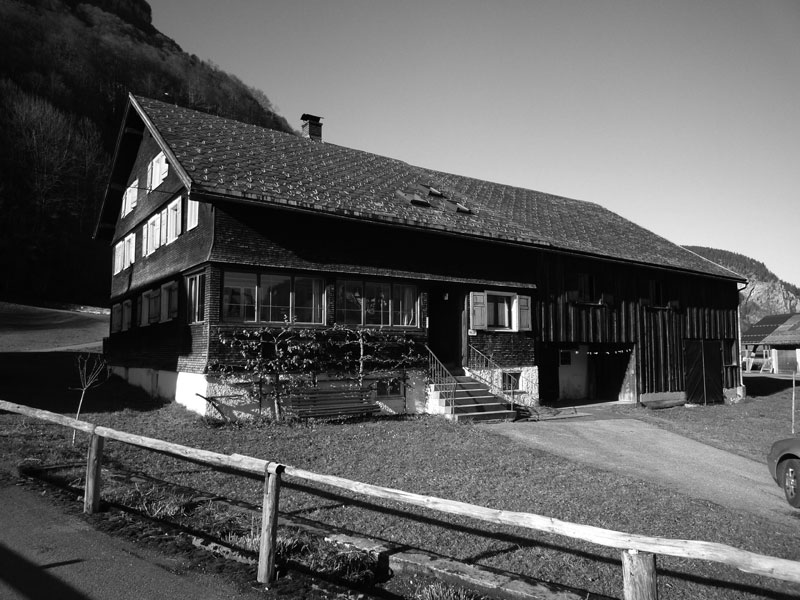

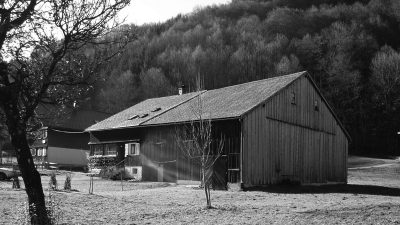

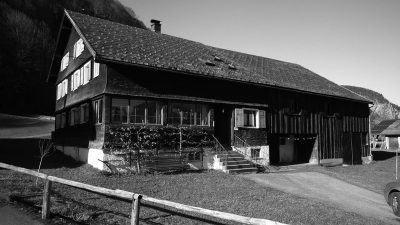

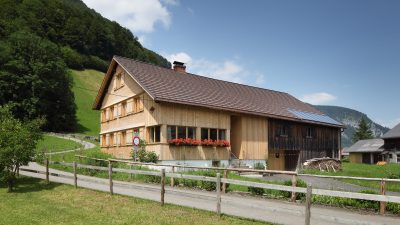

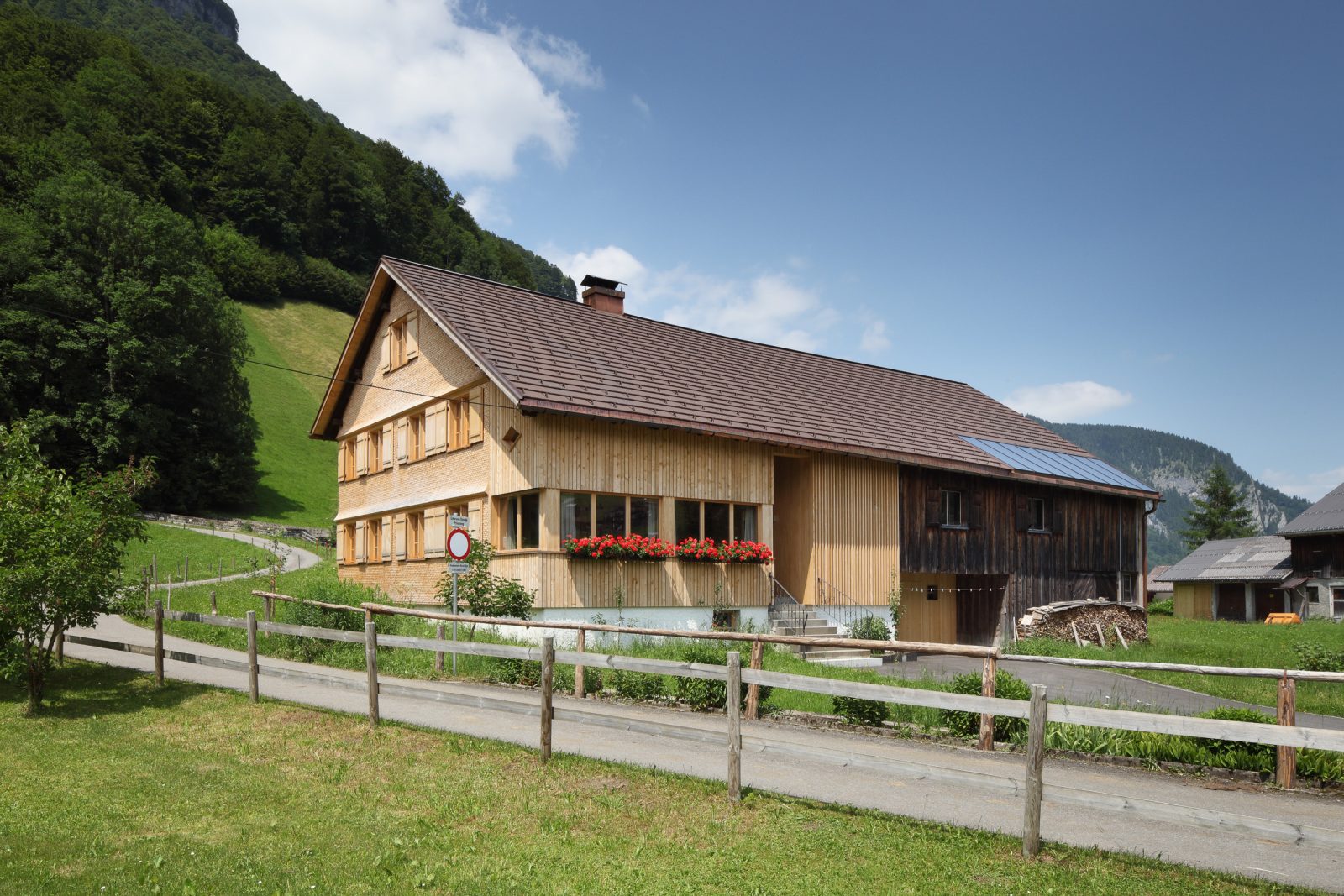

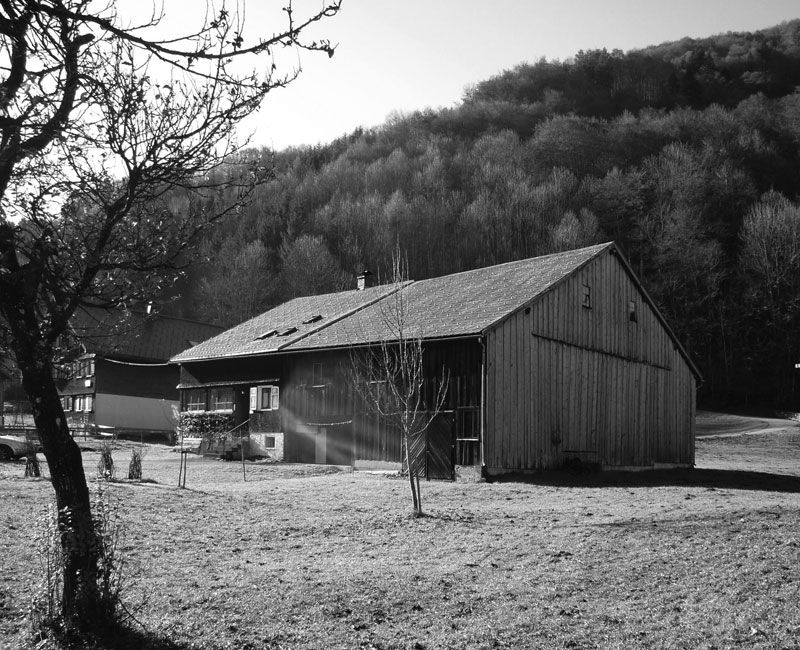

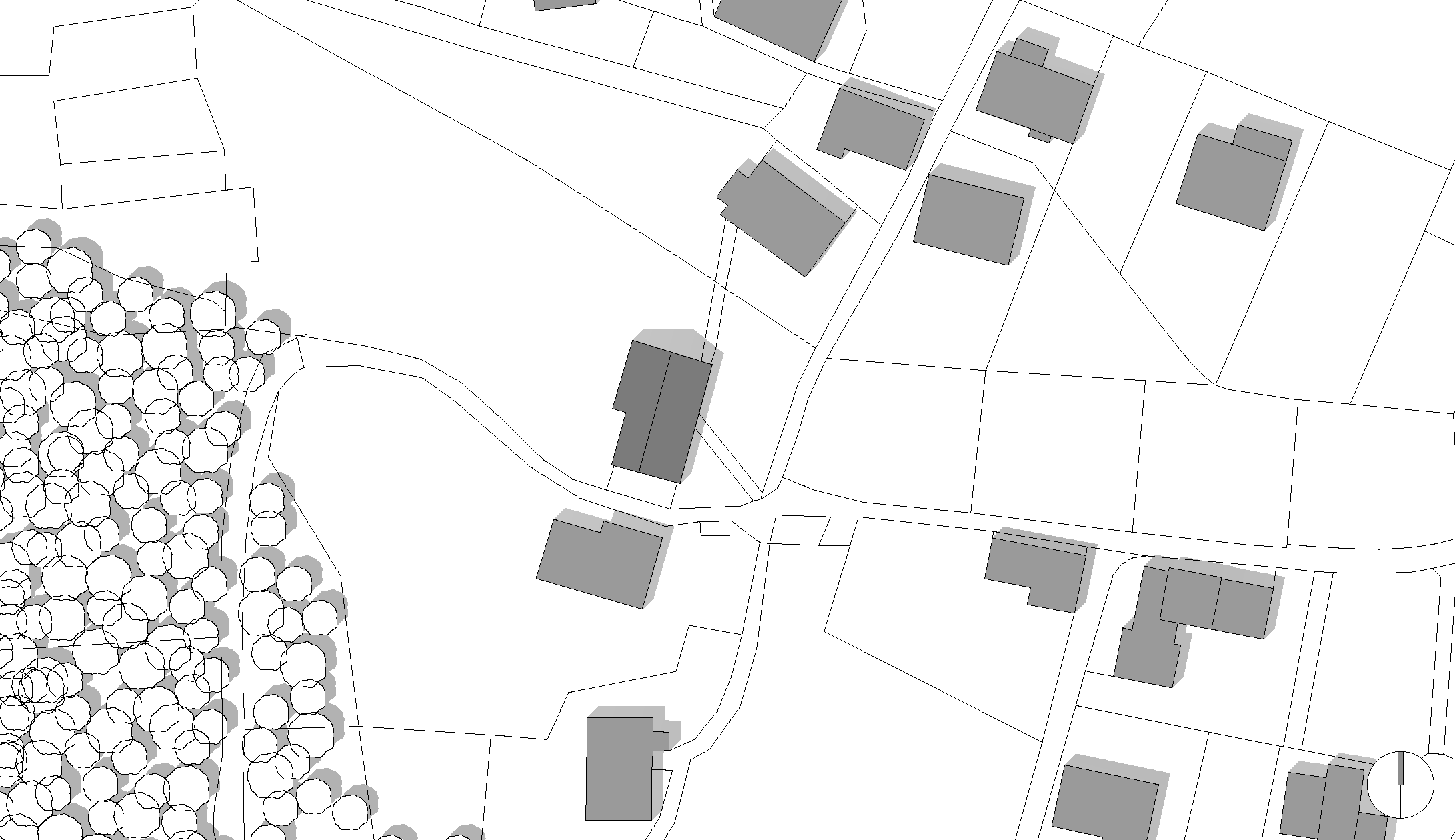

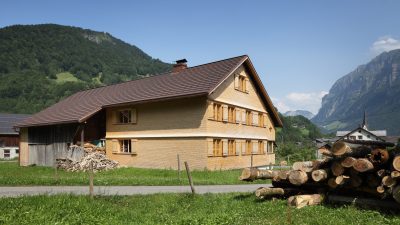

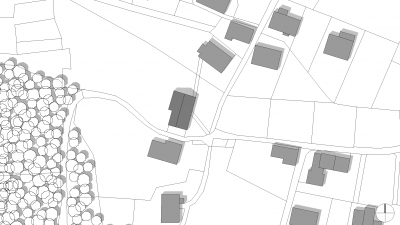

This typical Bregenzerwald house, with both residential and agricultural spaces,  dates back to about 1880 and is part of a hamlet in Mellau where old farmhouses are restored to the highest standard.

»It has created a whole new quality of design settlement.«

Univ.-Prof. Arch. DI Hermann Kaufmann

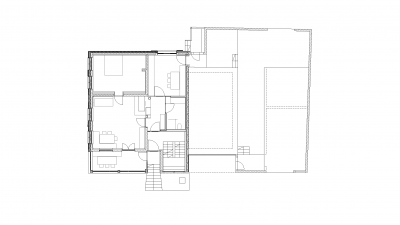

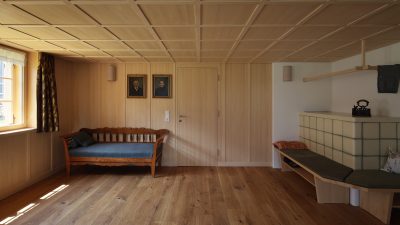

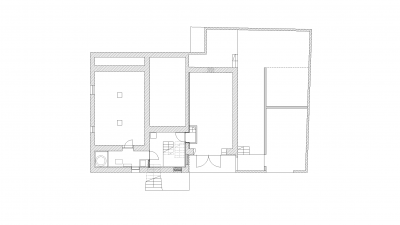

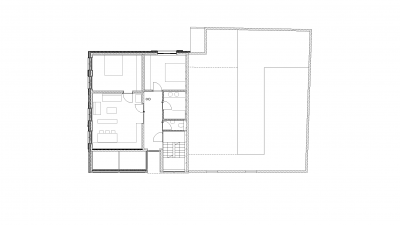

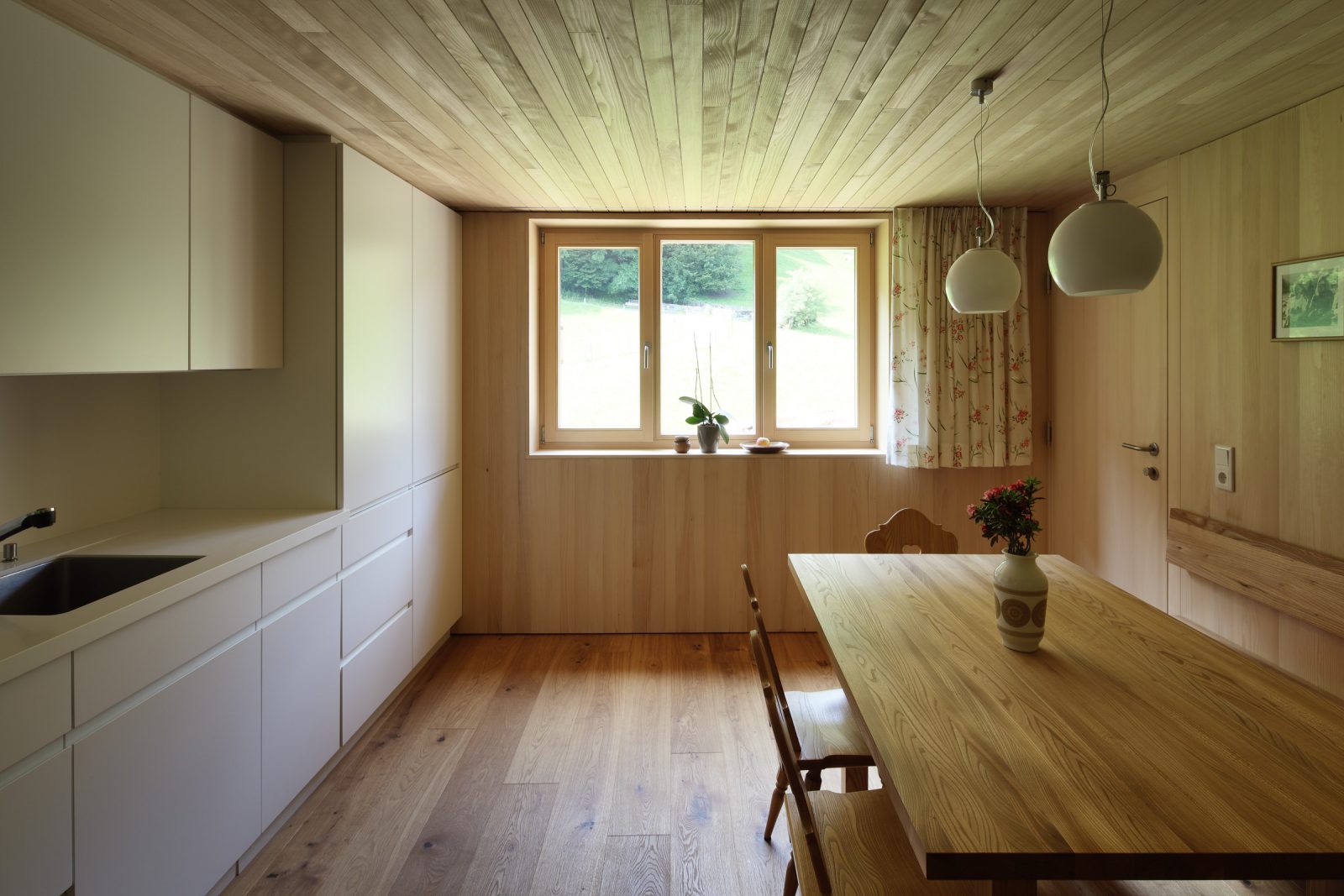

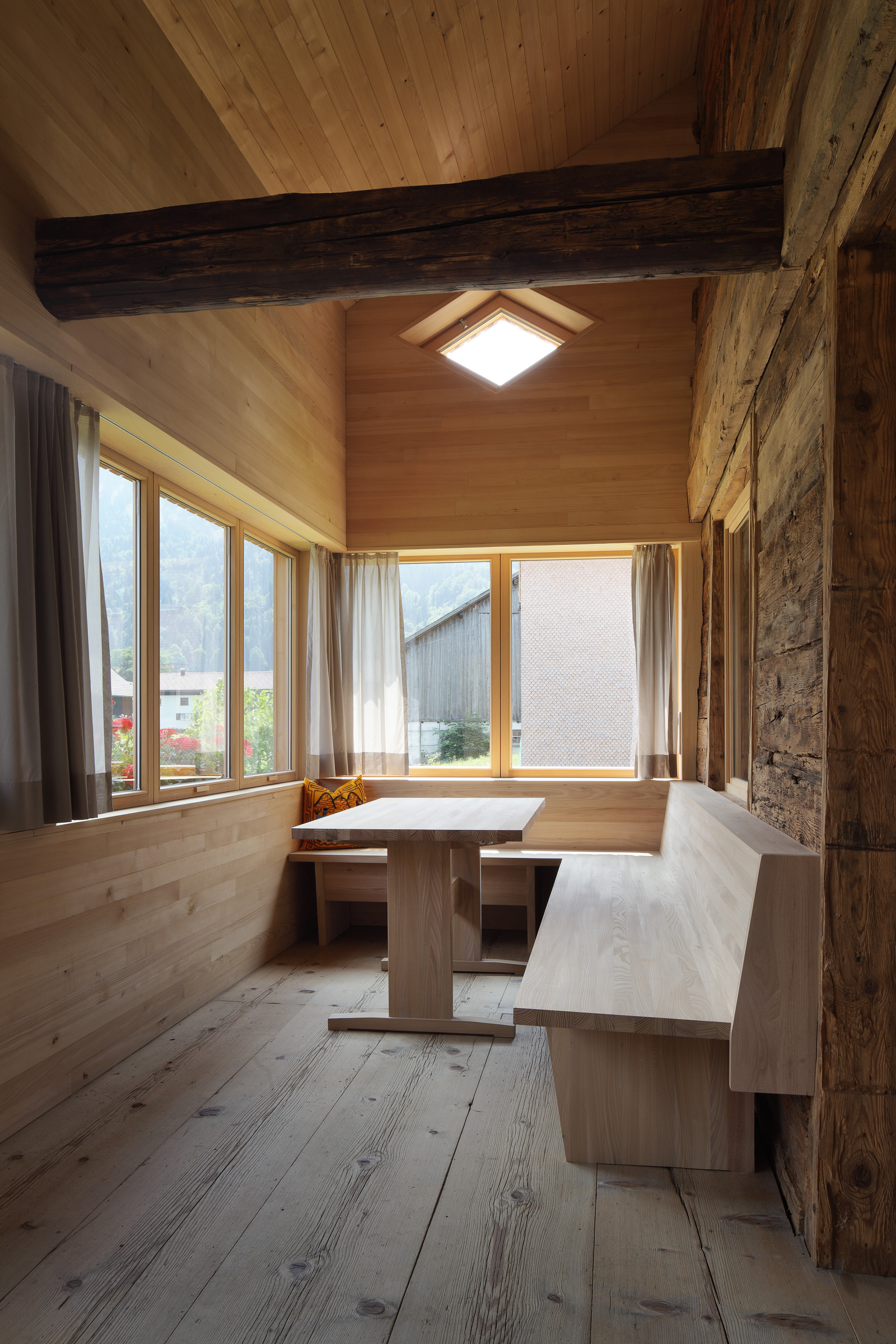

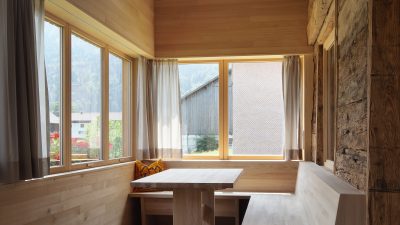

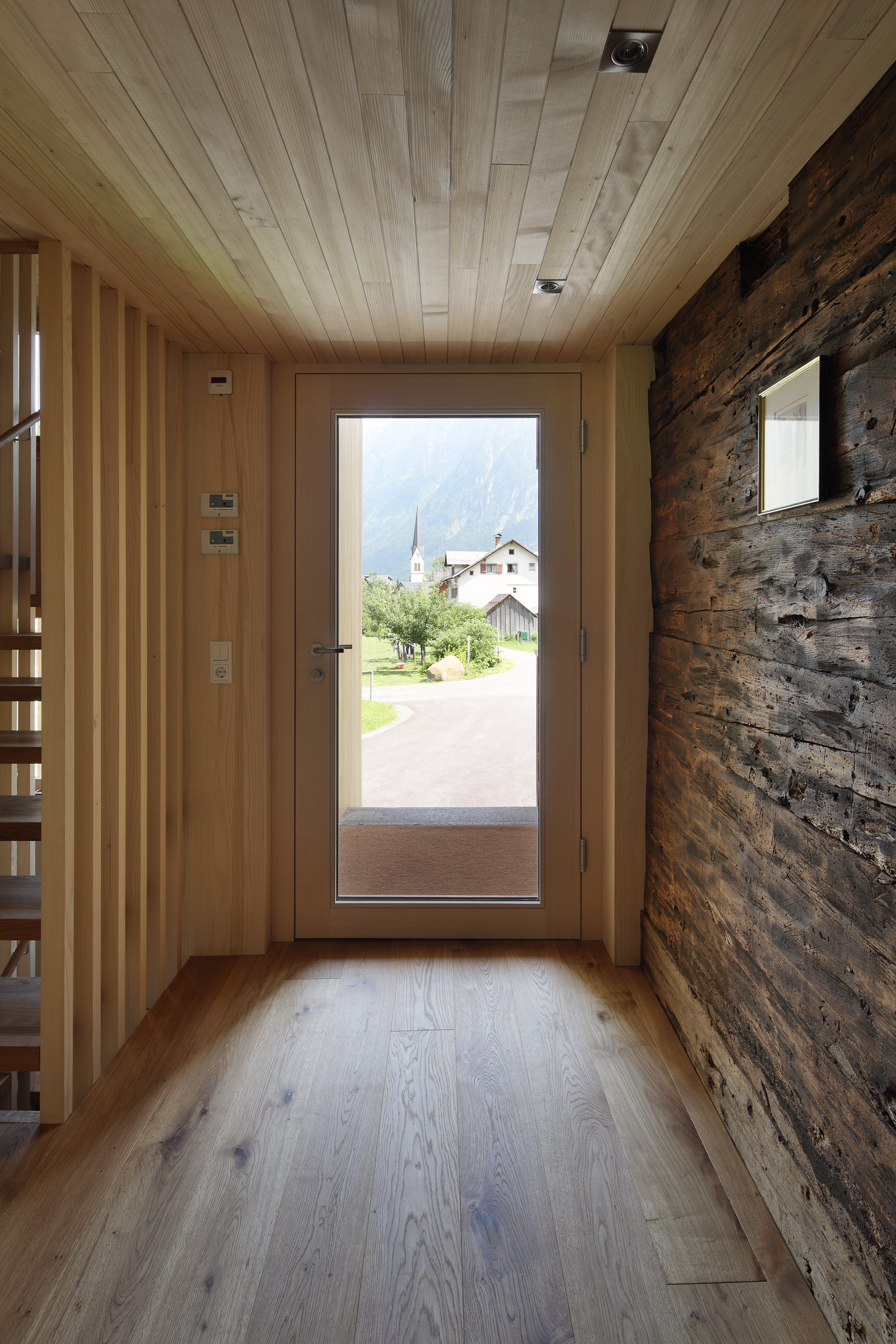

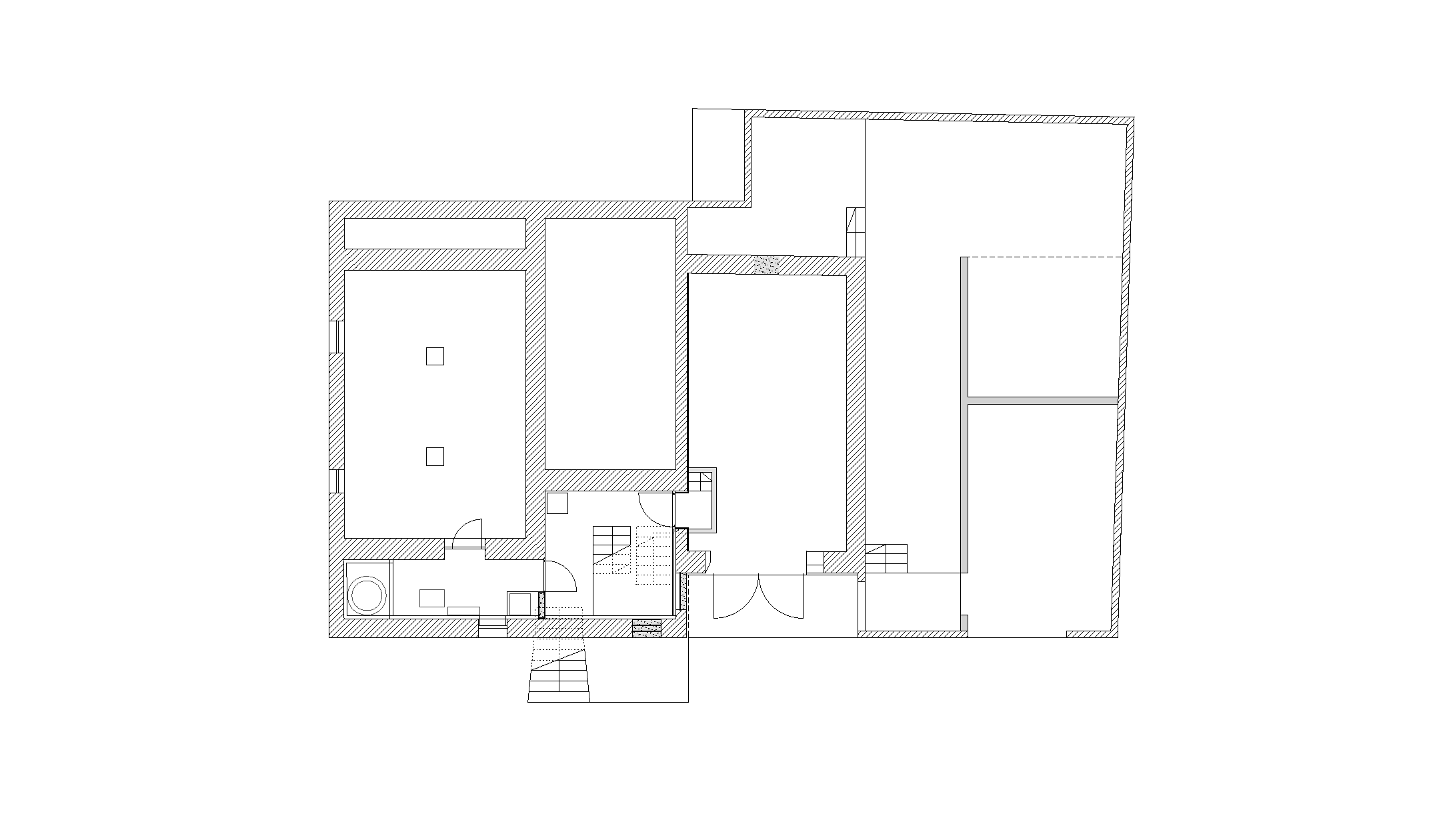

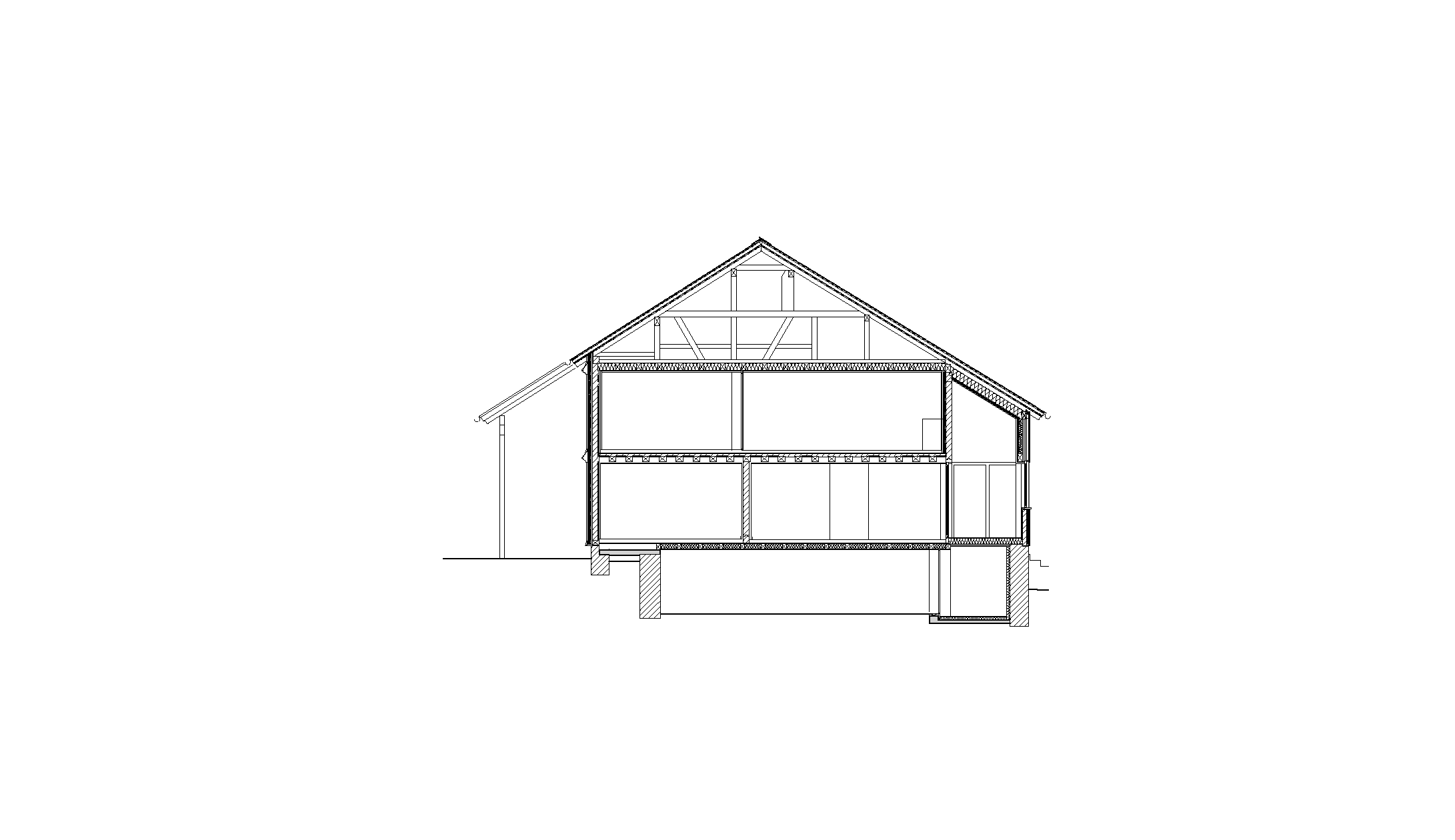

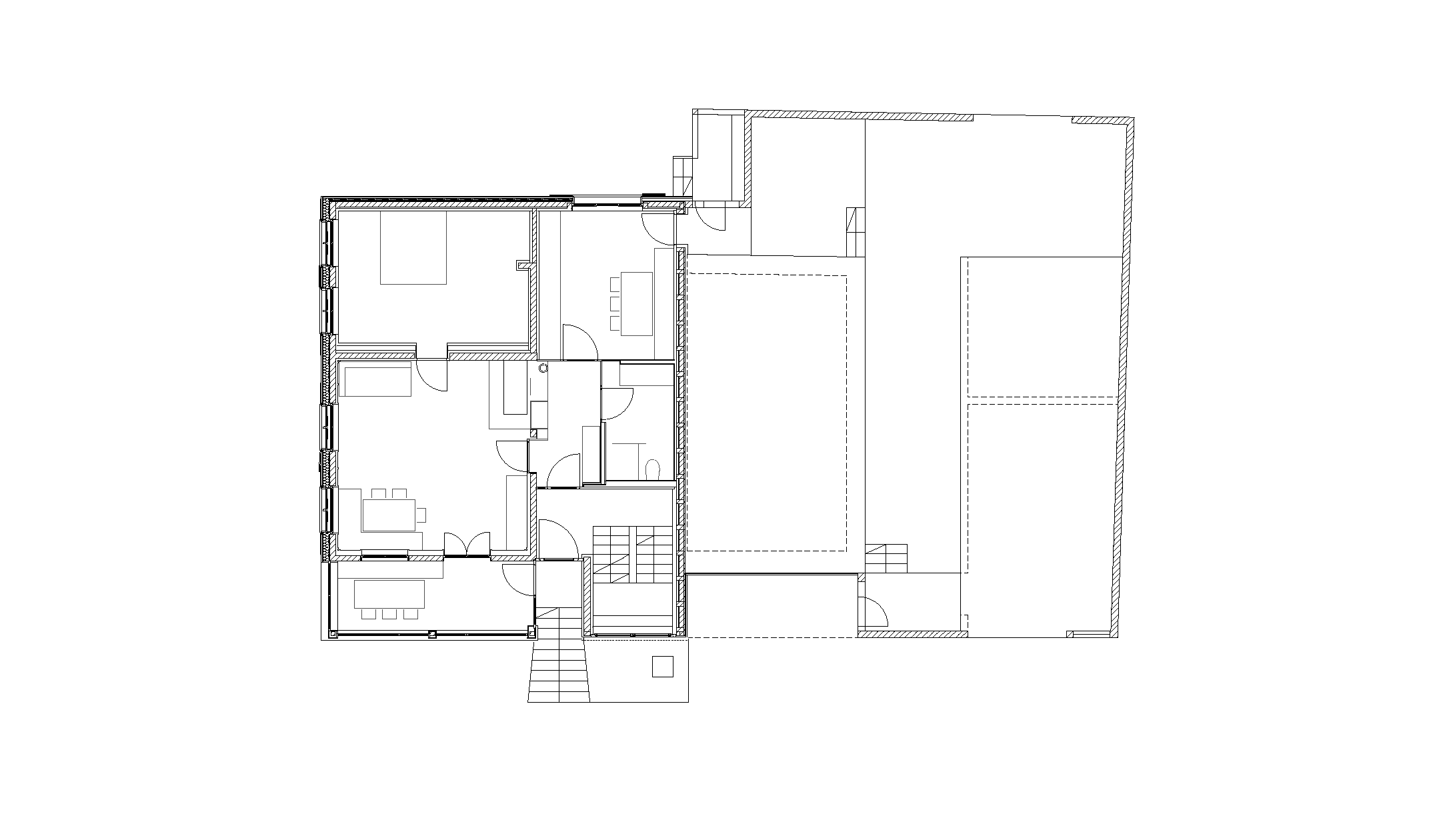

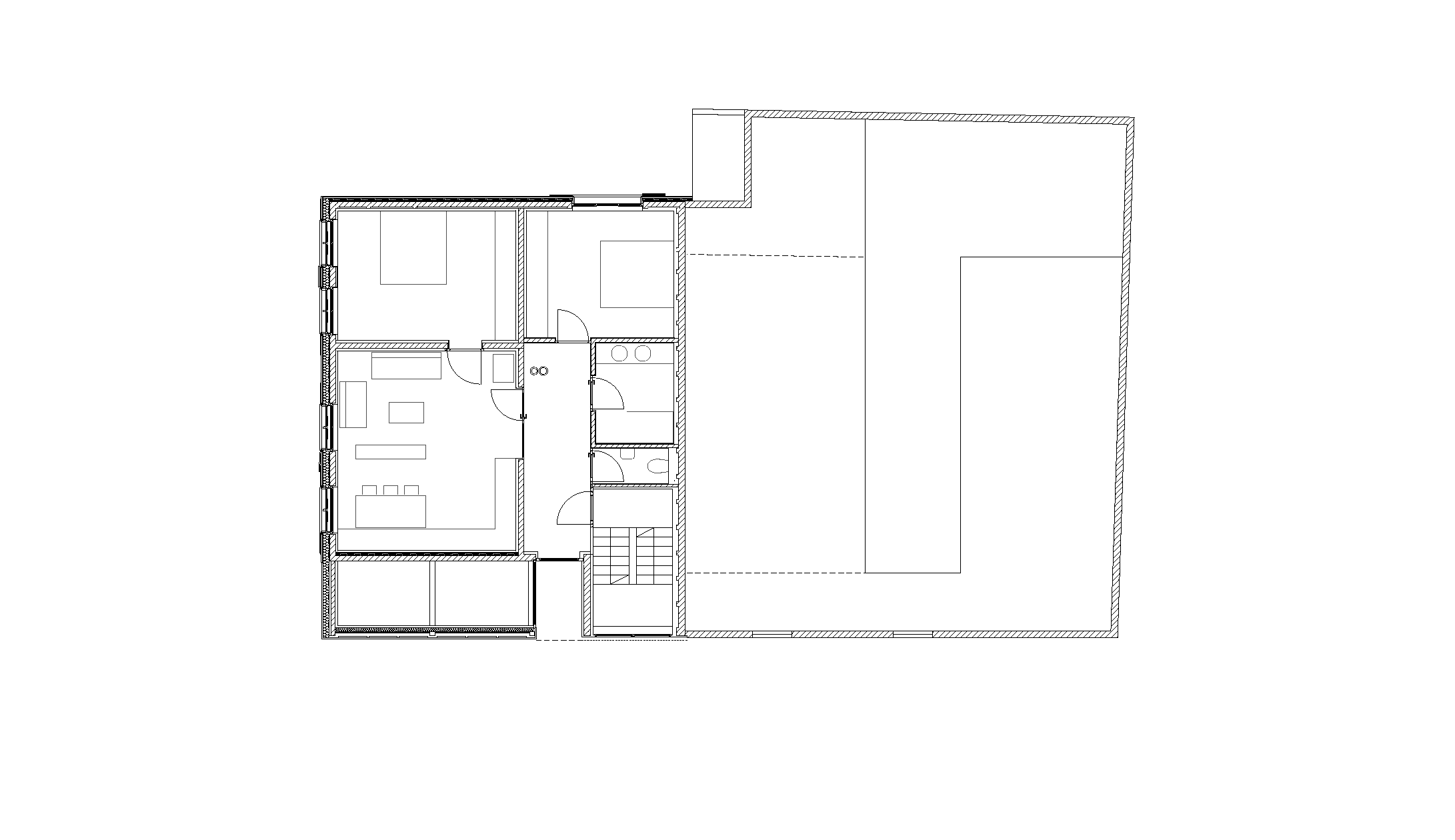

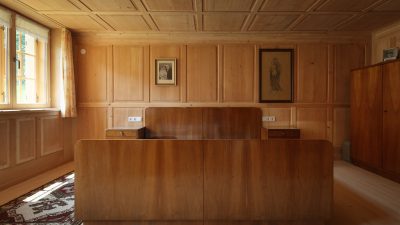

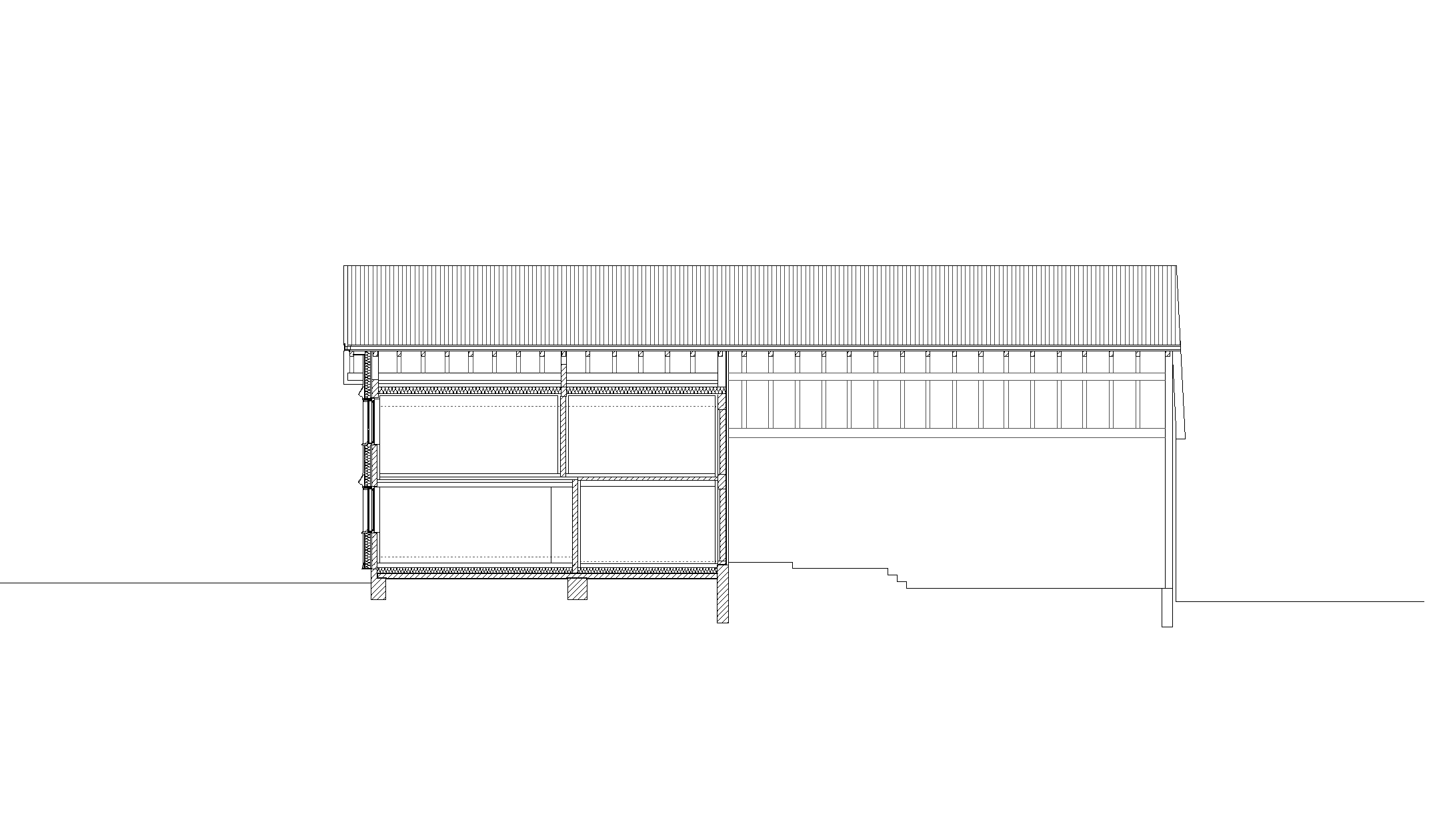

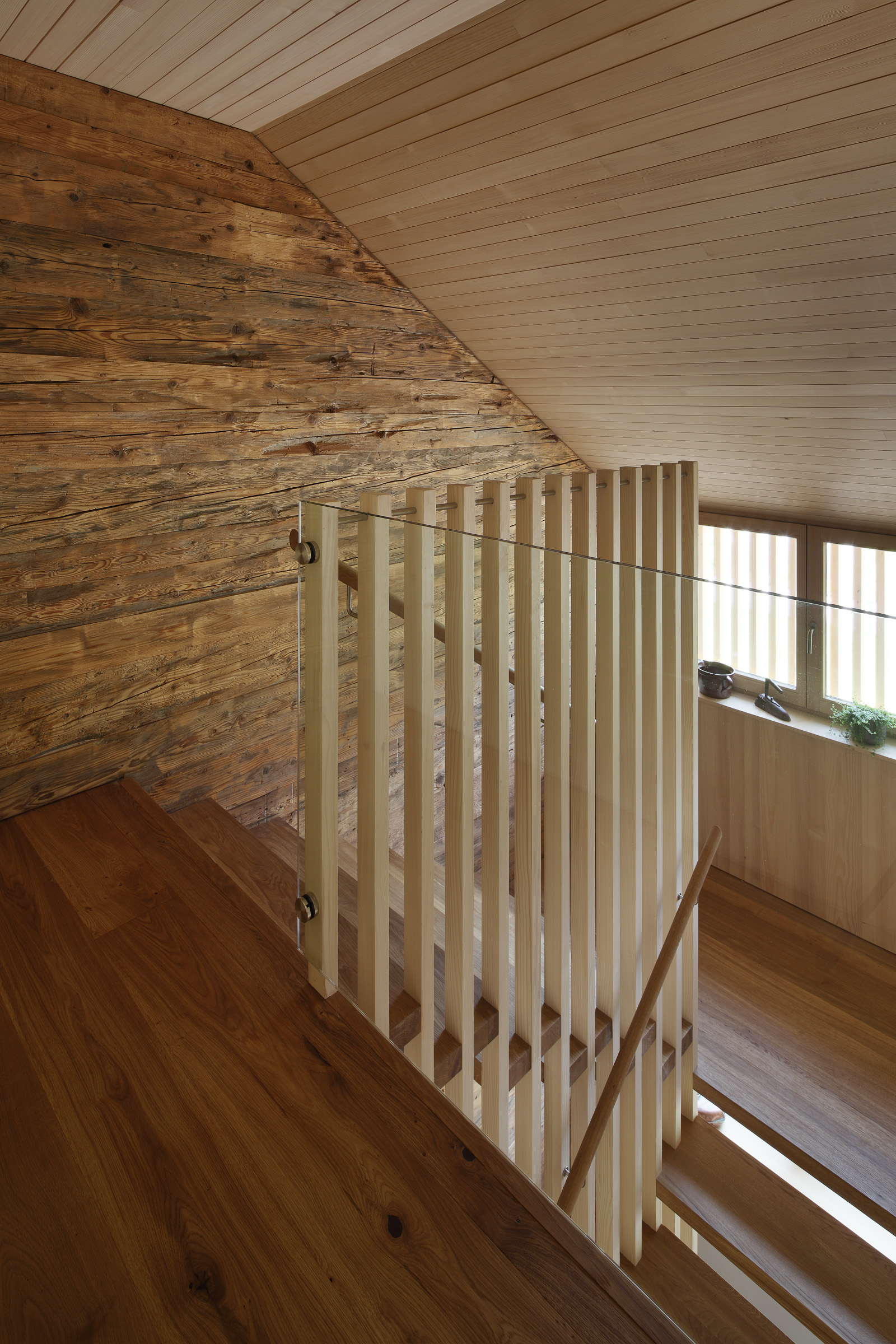

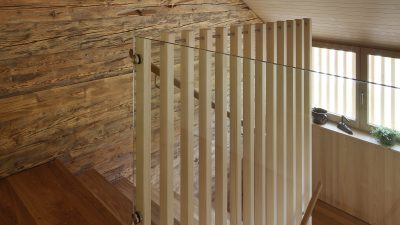

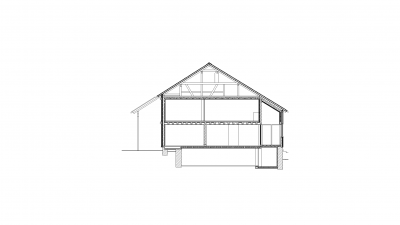

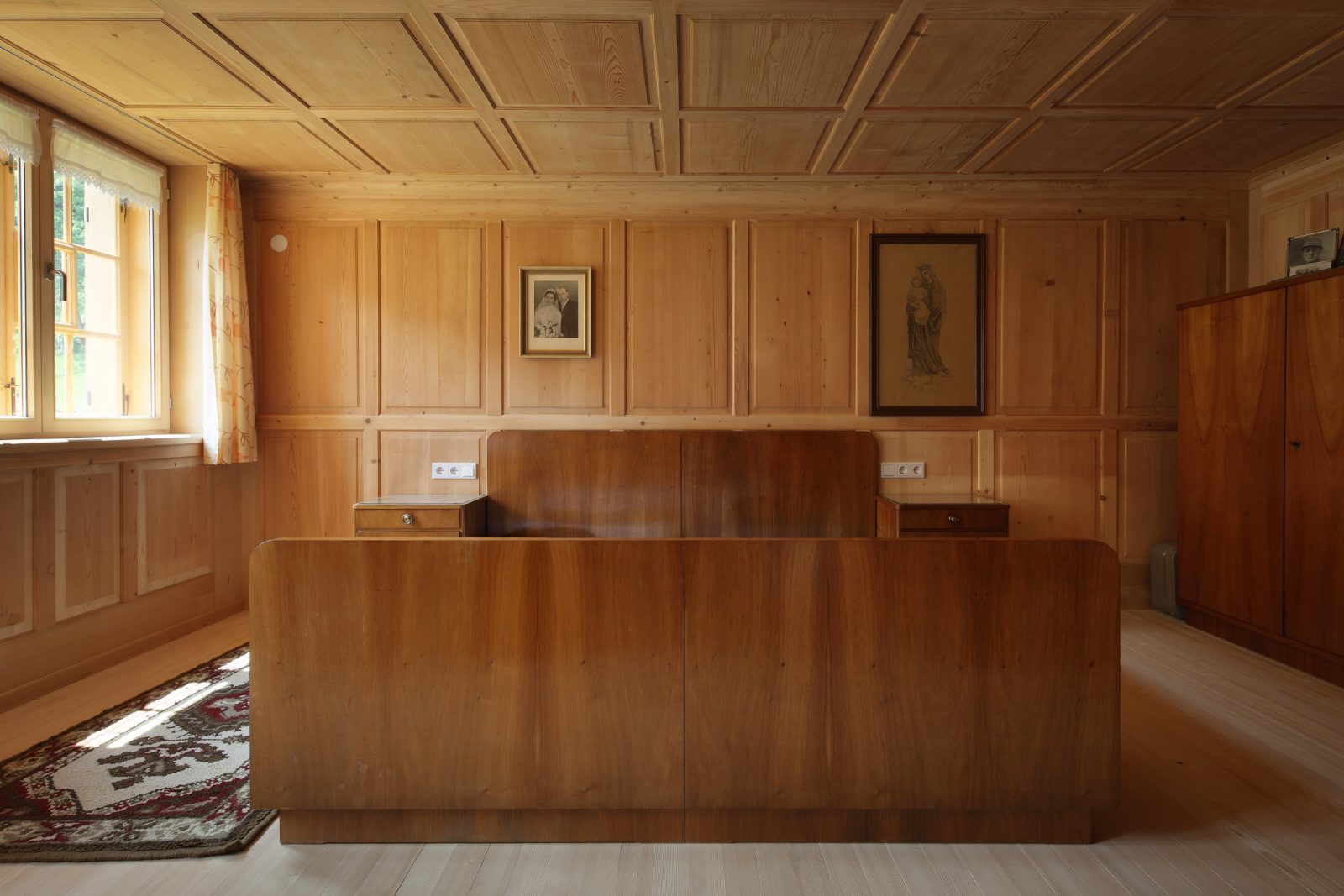

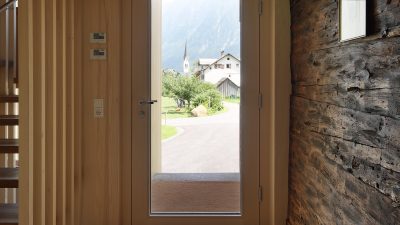

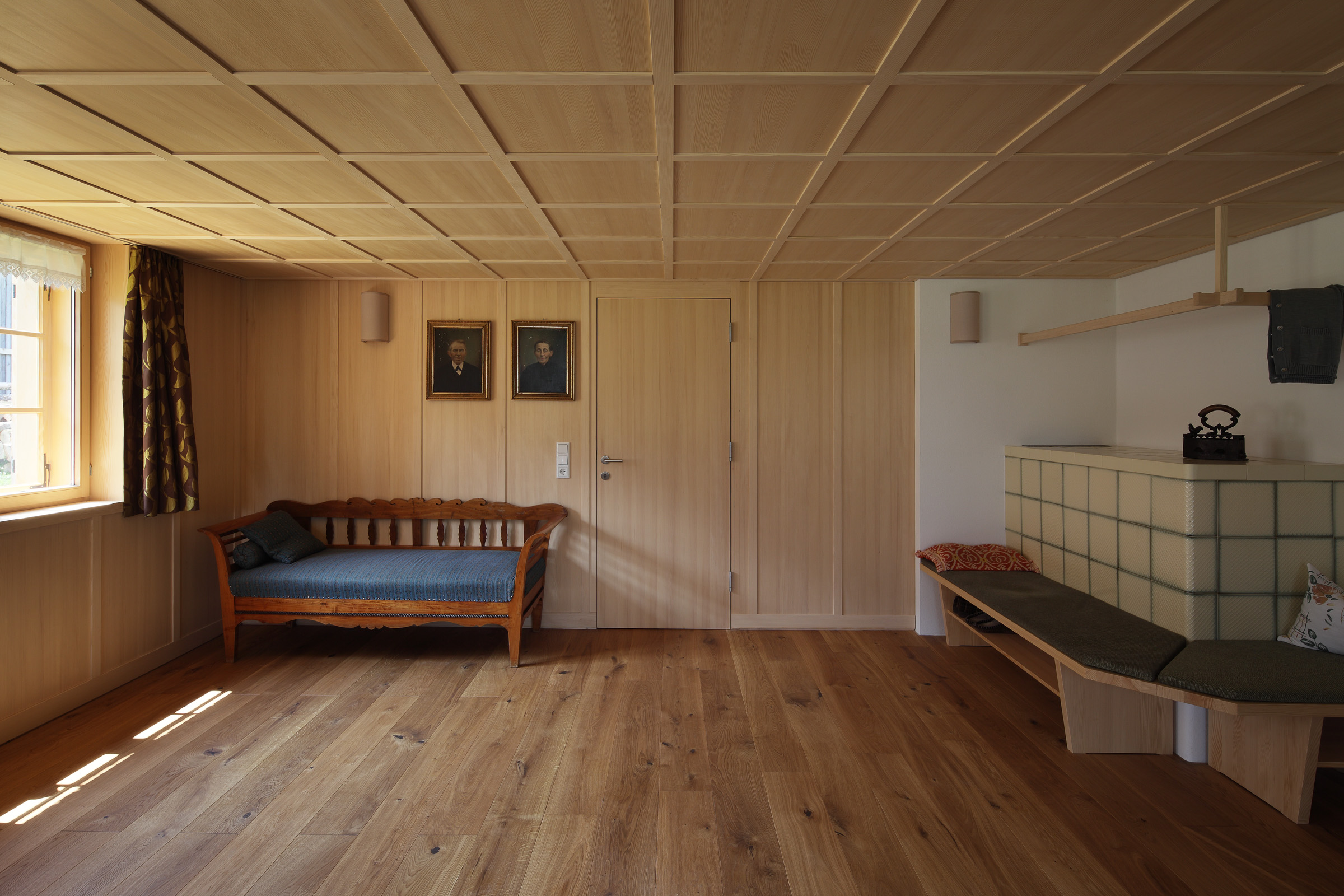

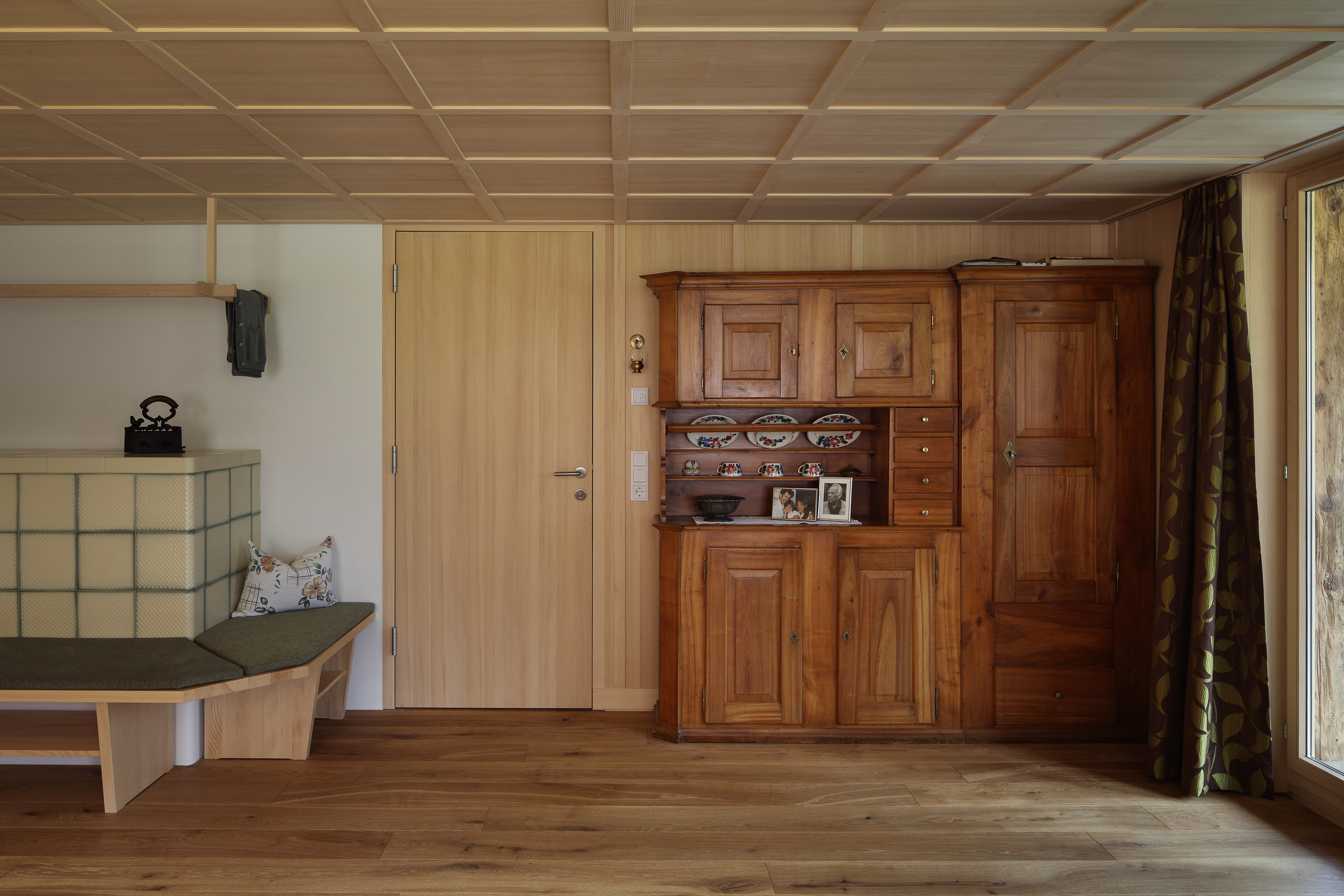

For this revitalisation the residential element is preserved, but undergoes major renovations. Higher rooms were asked for so the floor on the ground level is lowered and in the upper floor, the ceiling is raised. The stairs will also be relocated, thus separating and opening up the living areas. Light comes into the house though the staircase; wooden slats jut up from the basement to the upper floor, the railing is glass. Visible original walls, contrasting to new timber and glass openings, create a whole that is atmospheric. The floor plan follows the original structure, but is adapted to the requirements of contemporary living.

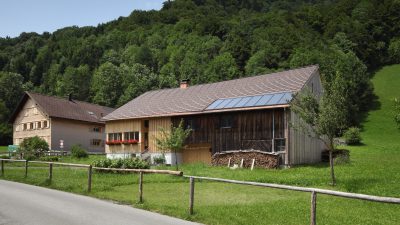

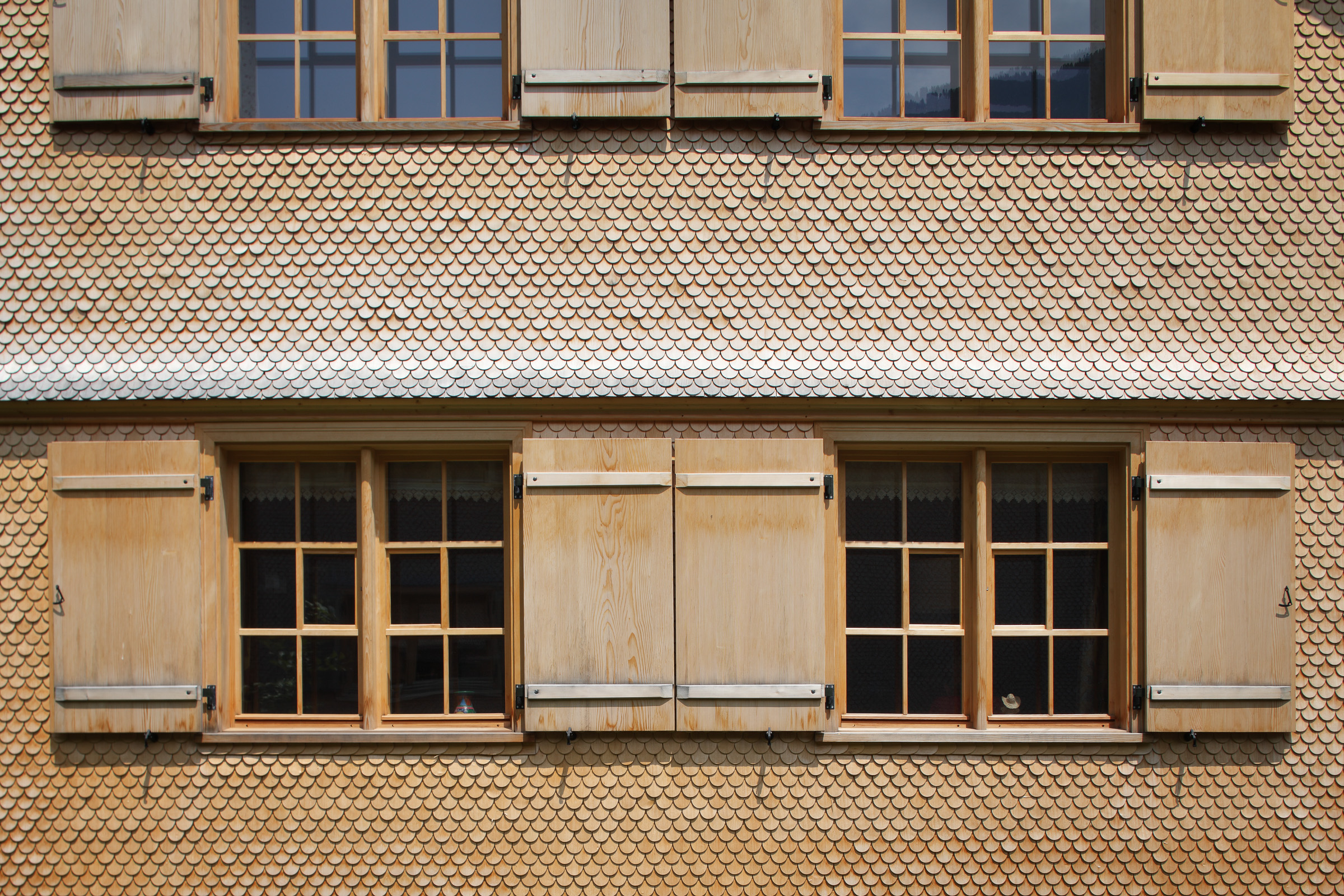

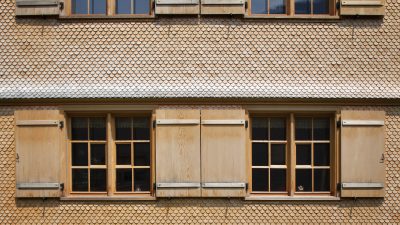

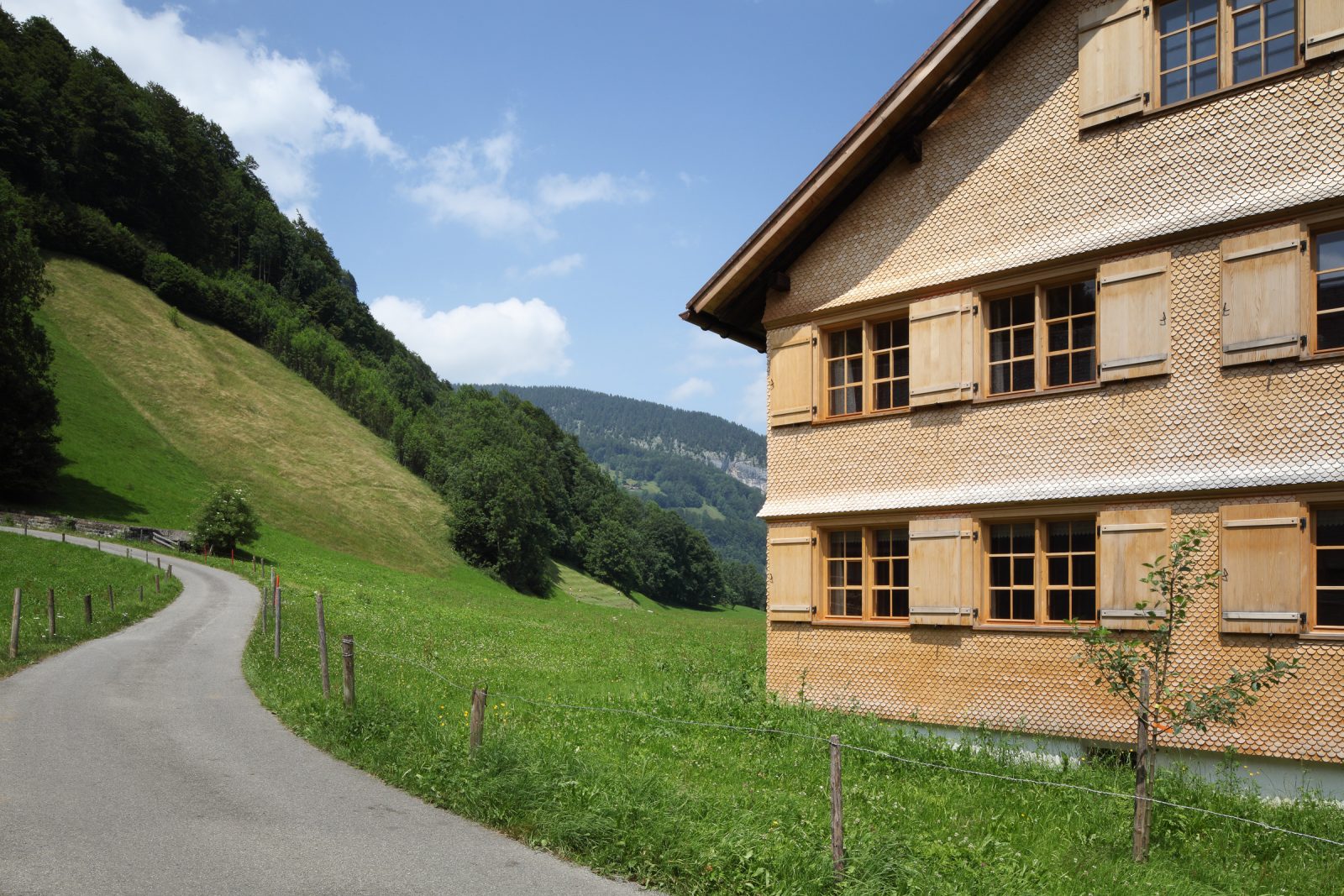

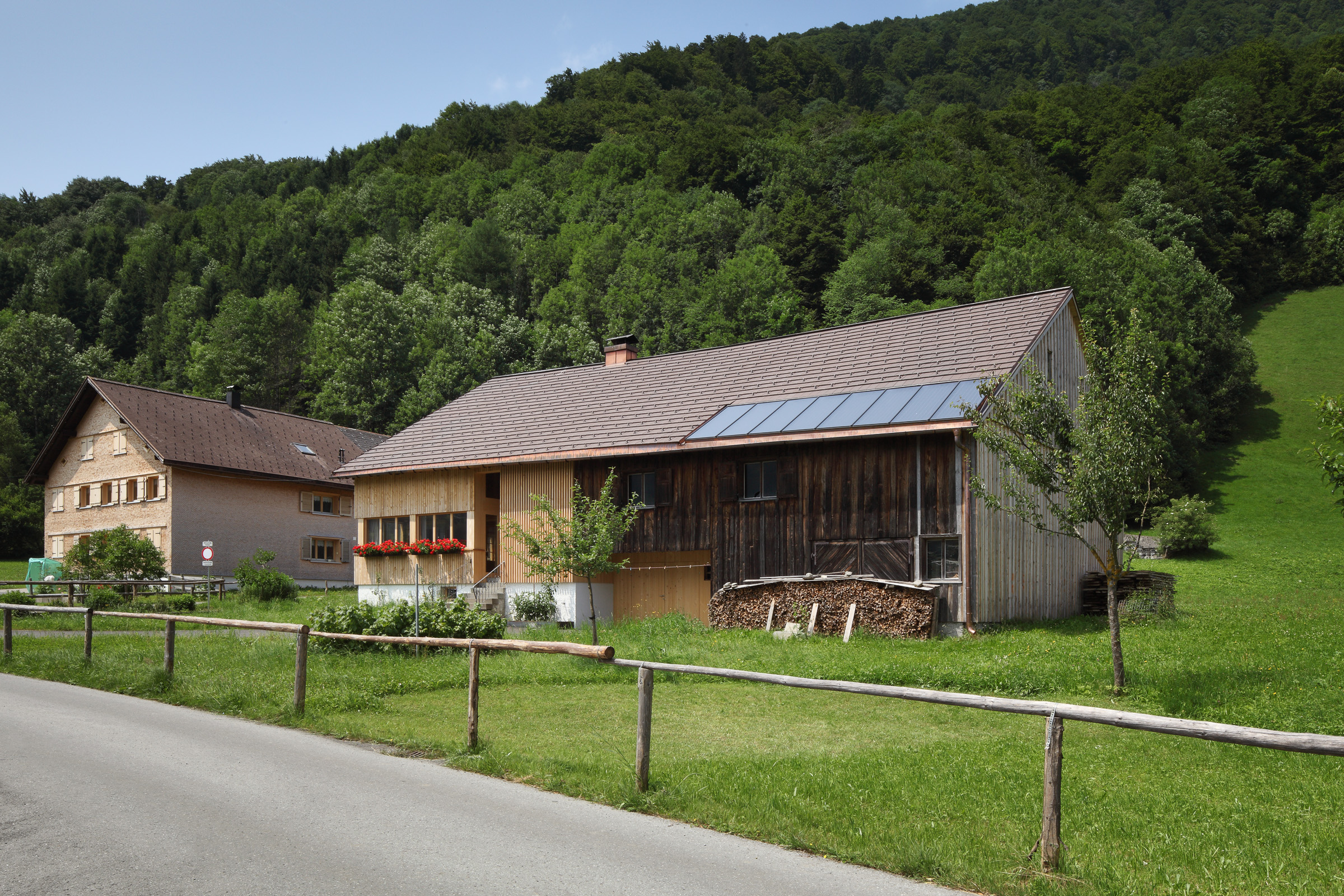

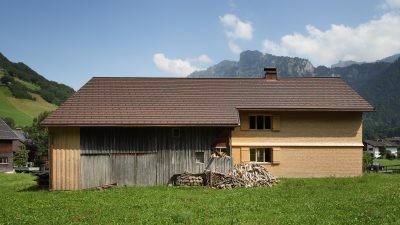

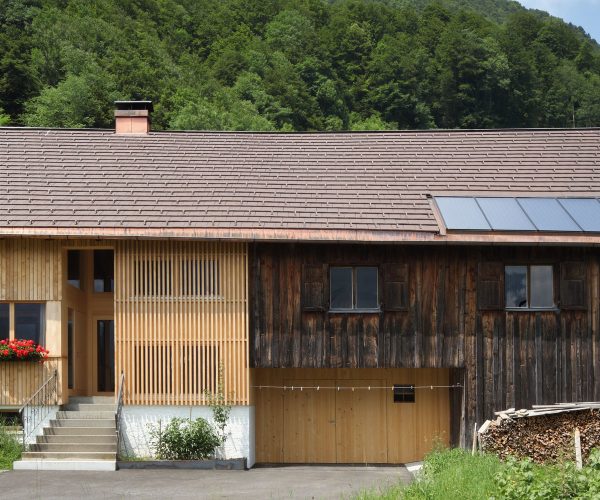

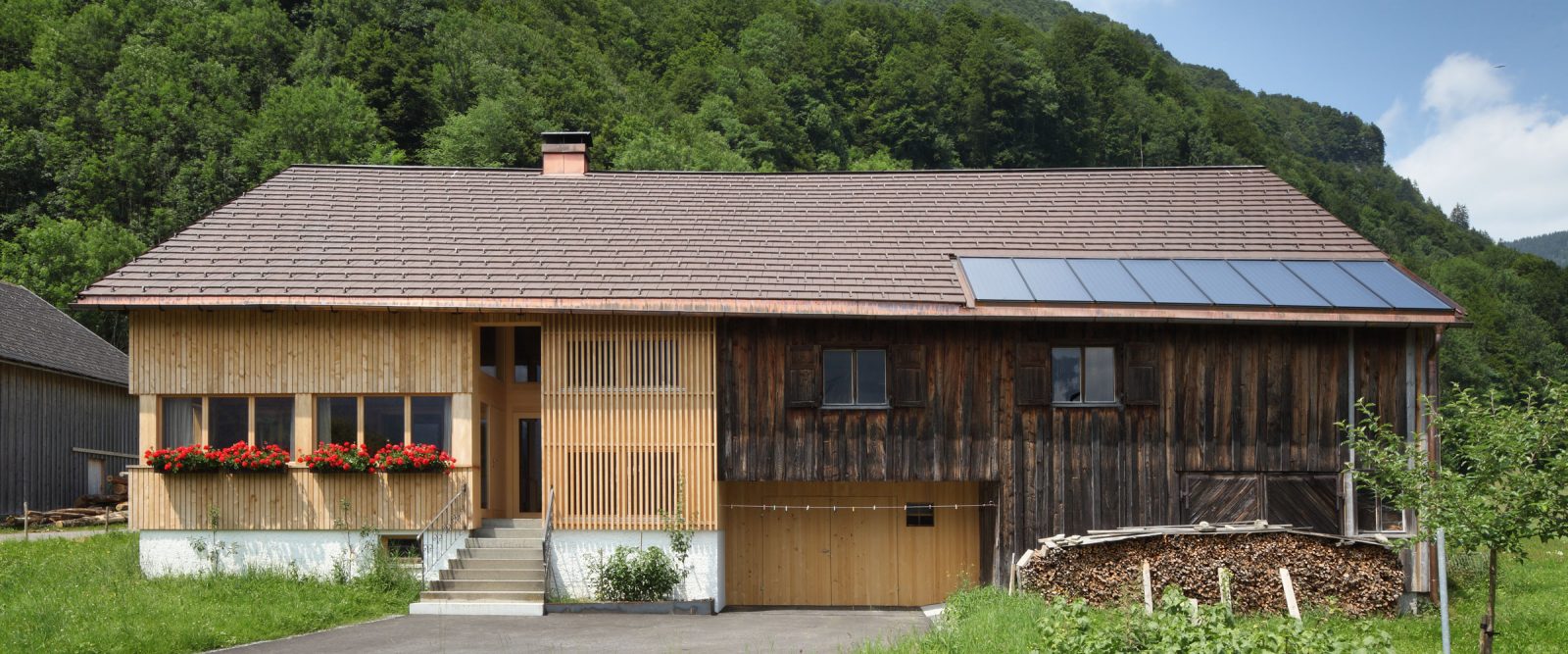

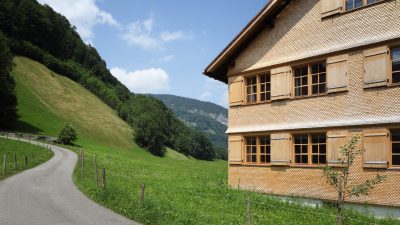

The agricultural ‘Schopf’ element of the building works as an unheated boiler room, accessed directly from the entrance area. The shingle facade of the building buffers the vertical timber shrouding the ‘Schopf’ and the large timber entrance doors, creating a new symmetry for the gable side. The large windows of the staircase are also slatted, creating a soft transition to the facade of the rear building.


Project Details


Public

    Publications
  • Haus Bischof Mellau – zurück an den Start
    ZN Z-270, 100 Österreichische Häuser, Ausgabe 2014/15, S. 36-37
