Project Information

07_43

  • Project Leader
    Arch. DI Roland Wehinger
  • Colleague
    Johannes Grissmann
  • Cost Planning
    Sohm Holzbautechnik GesmbH, Alberschwende
  • Building Site Manager
    Sohm Holzbautechnik GesmbH, Alberschwende
  • Client
    Sohm Holzbautechnik GesmbH, Alberschwende

    Location
    Alberschwende

    Finalisation
    2009

    Project Facts
    n.b.ar. 612m²,
    GFA heated 815 (1.300) m²,
    GBV heated 2.670 m³

    Rights
    Text Hermann Kaufmann + Partner ZT GmbH,
    Translation Bronwen Rolls

    Photo Bruno Klomfar

    Project Stakeholders
    • Structural Engineering Timber Construction
      gbd ZT GmbH, Dornbirn
    • Structural Engineering Concreate Construction
      Mader & Flatz ZT GmbH, Bregenz


    Holzbau Sohm, Alberschwende

    Innovative approaches to traditional solid timber construction creates a whole new perspective.

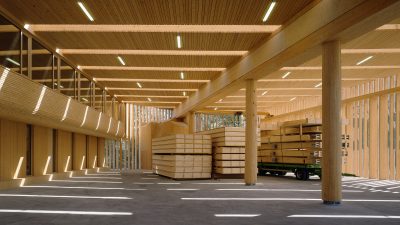

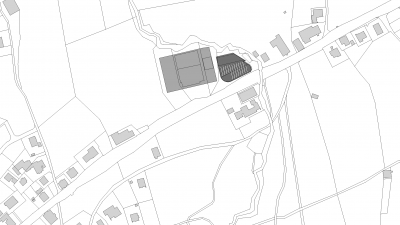

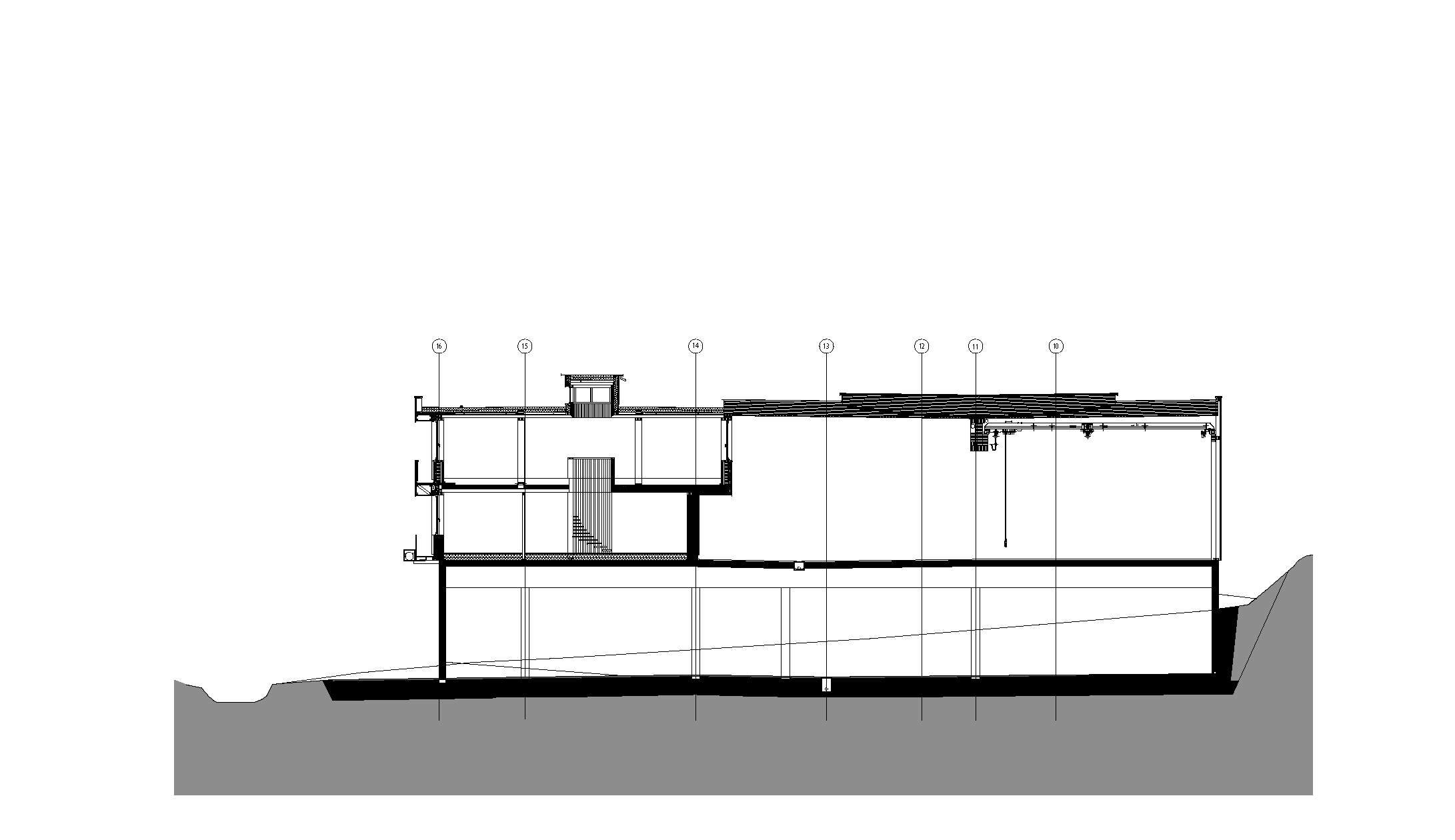

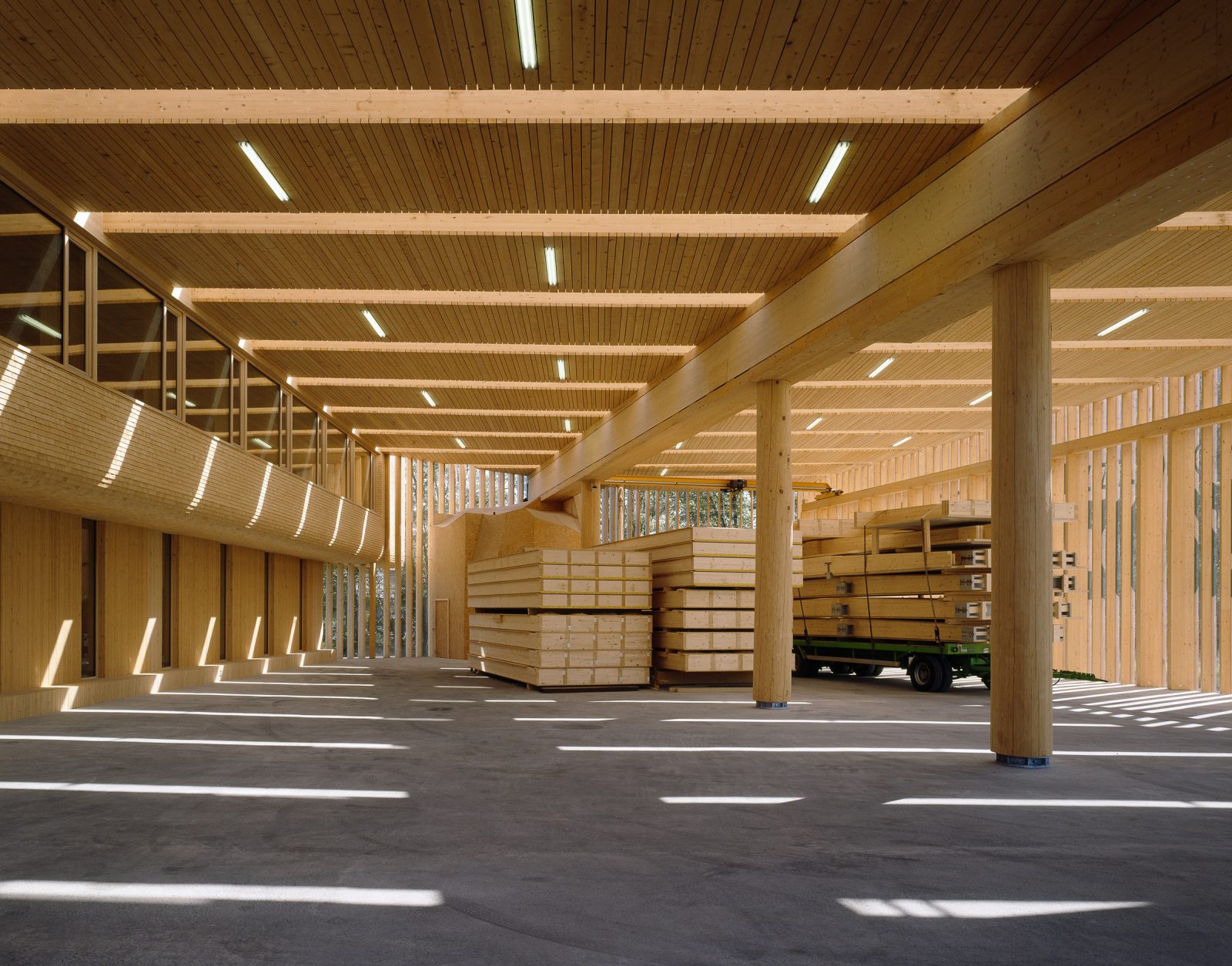

    The innovative timber company Sohm, in Alberschwende in Bregenzerwald had the opportunity to expand onto newly purchased land. The steep, sloping land allowed for the integration of storage space and a new heating installation system in the basement. It also allowed for the construction of a covered, but open, multi-purpose hall with a two-storey office, rising above the ground floor.

    »This is an example of a modern timber construction of the highest technological level in our time.«

    Univ.-Prof. Arch. DI Hermann Kaufmann

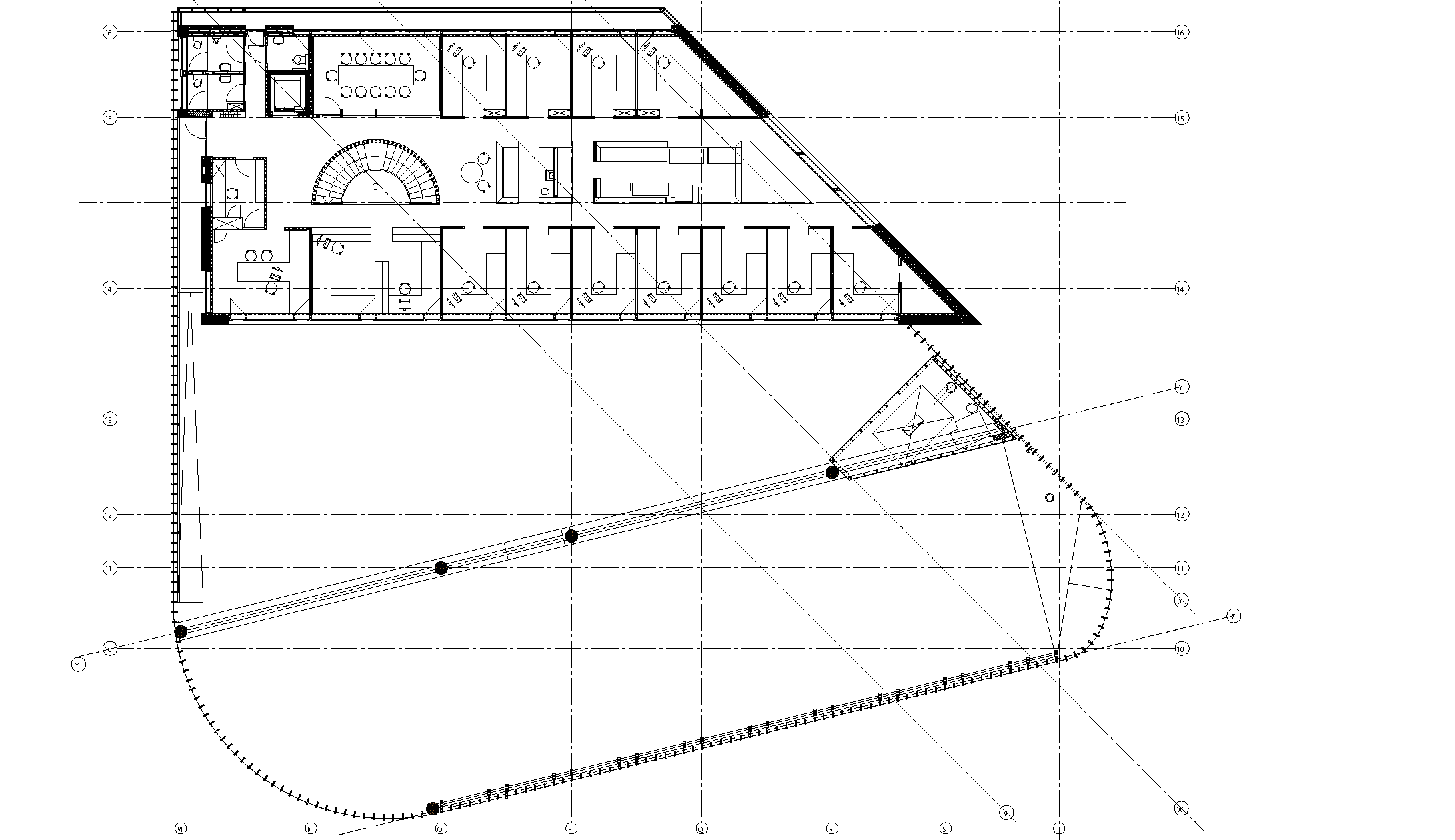

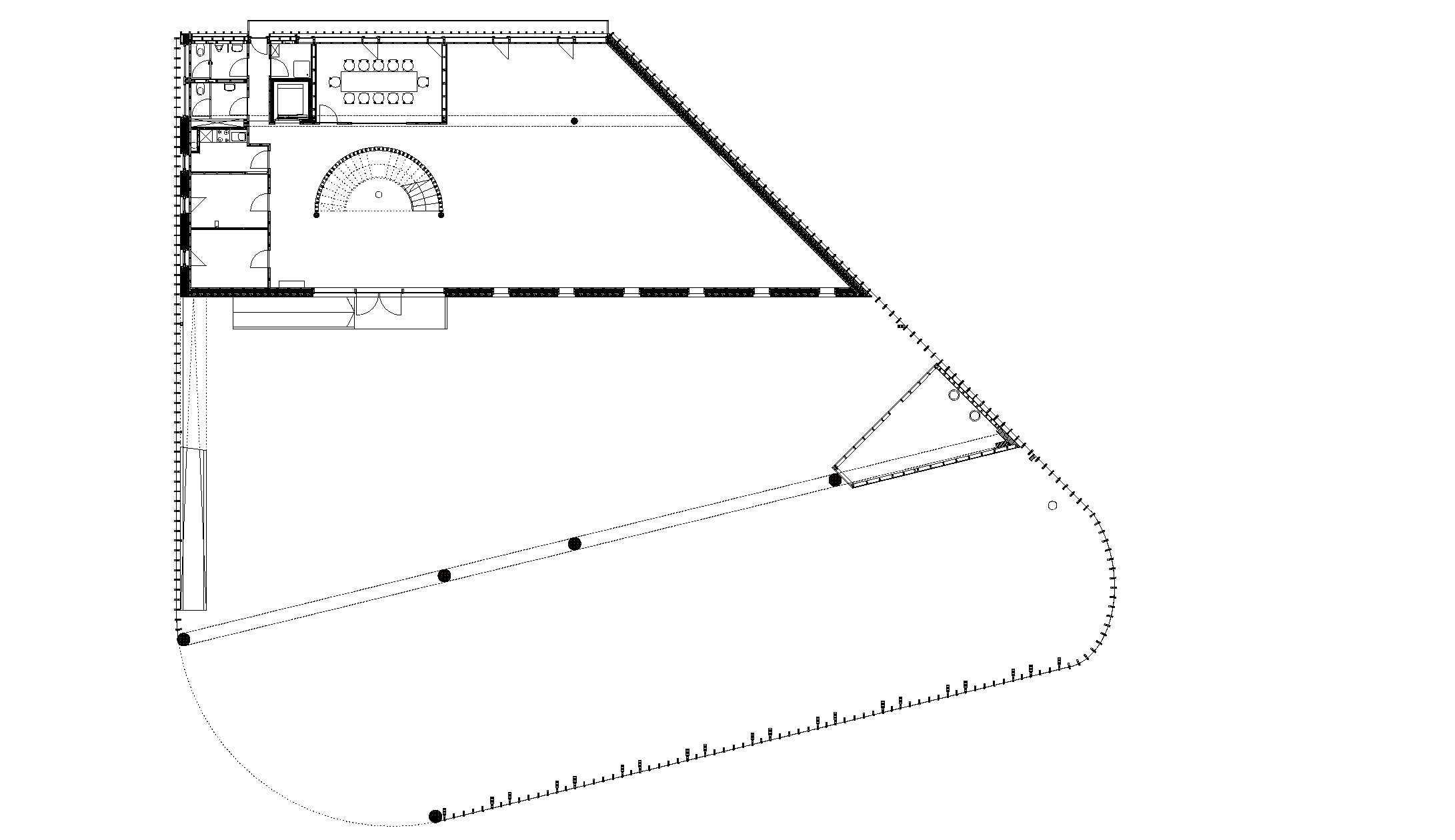

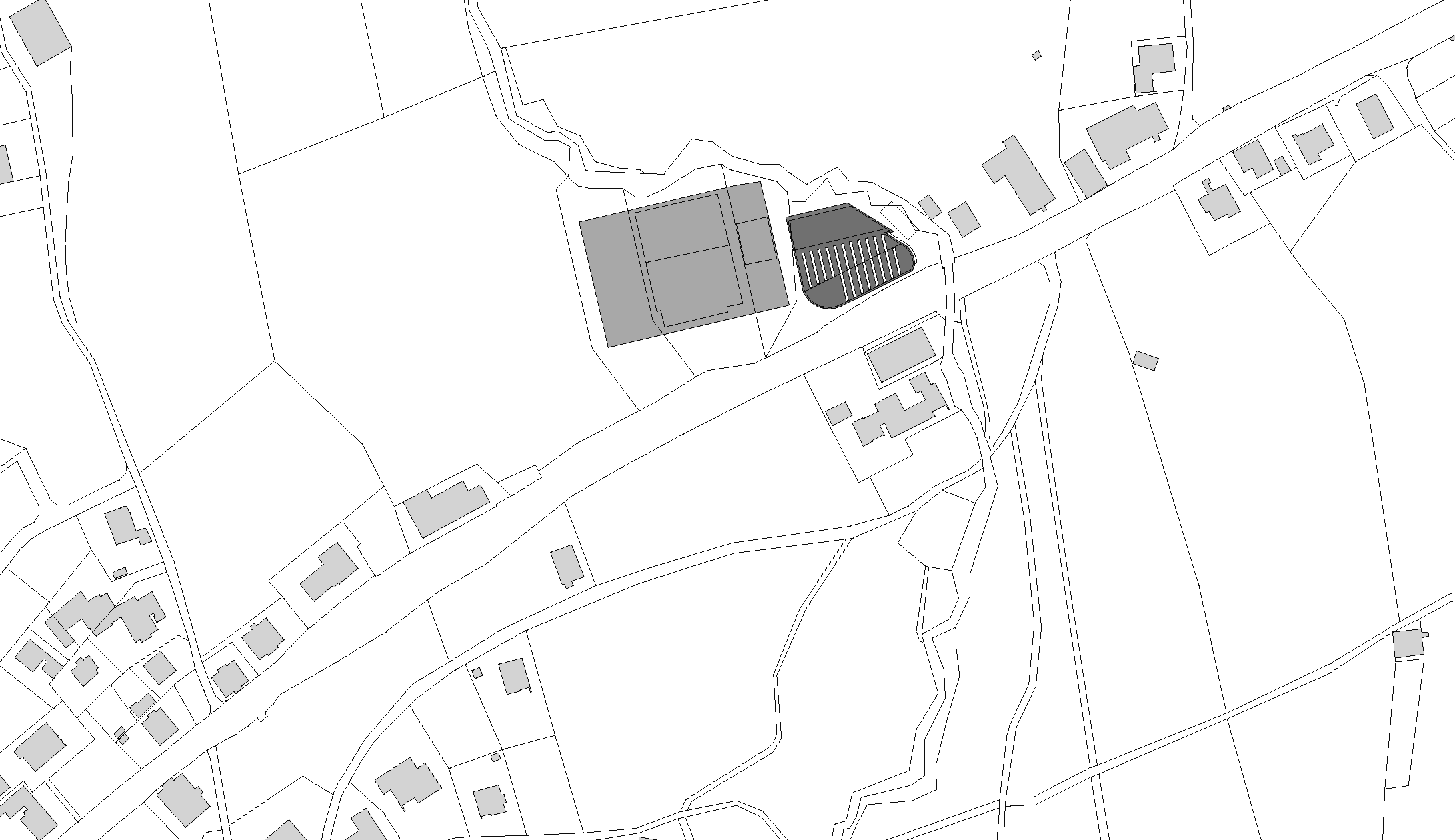

    The challenges when elaborating the design were twofold; the formal adaptation to the irregular land and the architectural connection of the extension with the open plan factory workshop with the small office space.

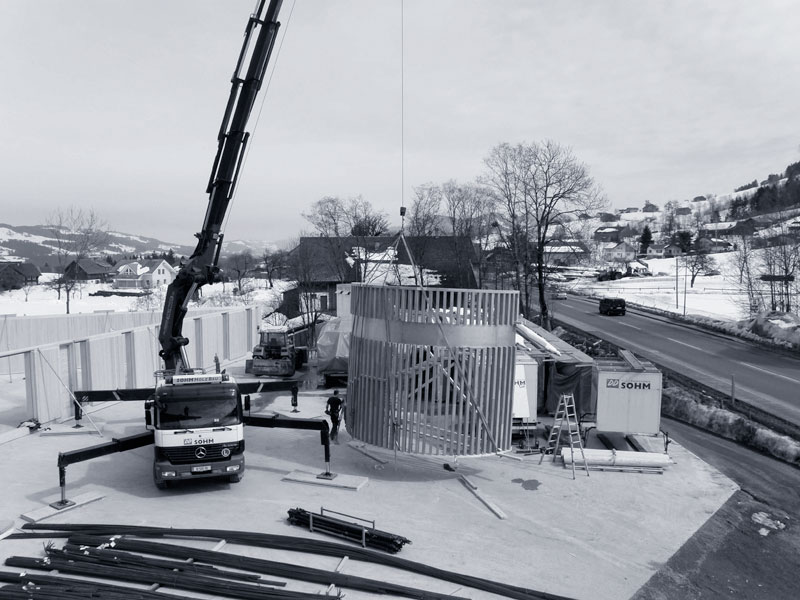

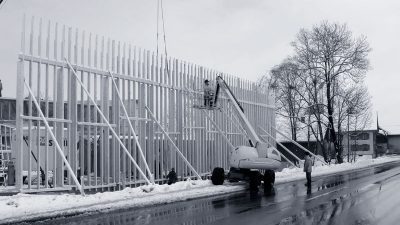

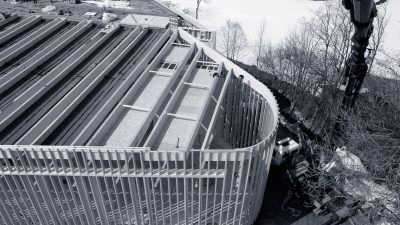

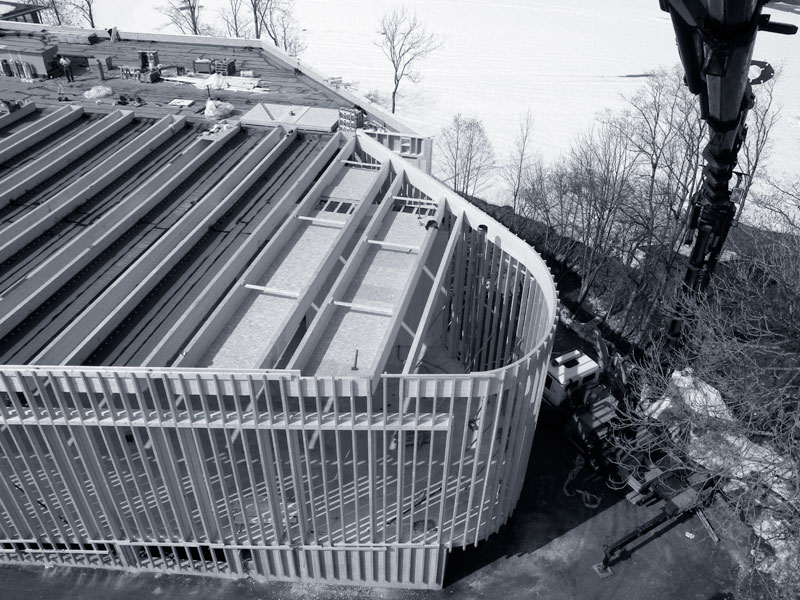

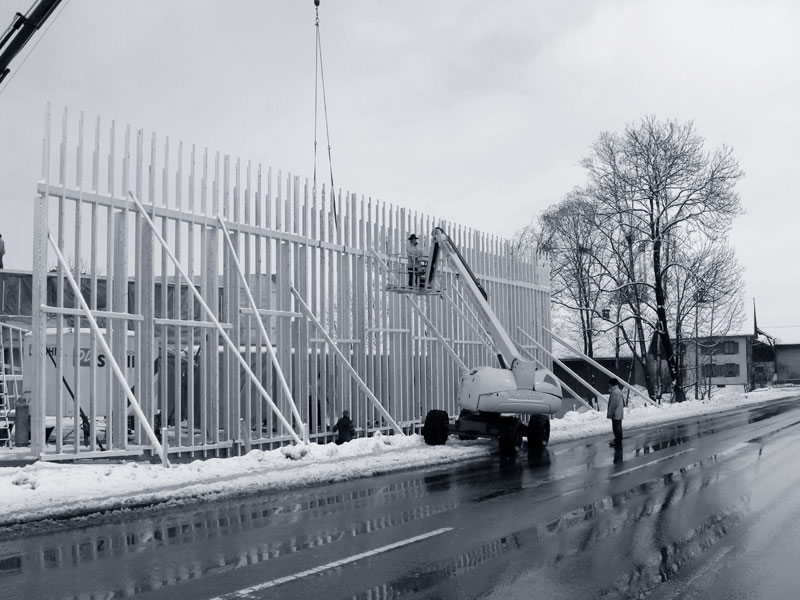

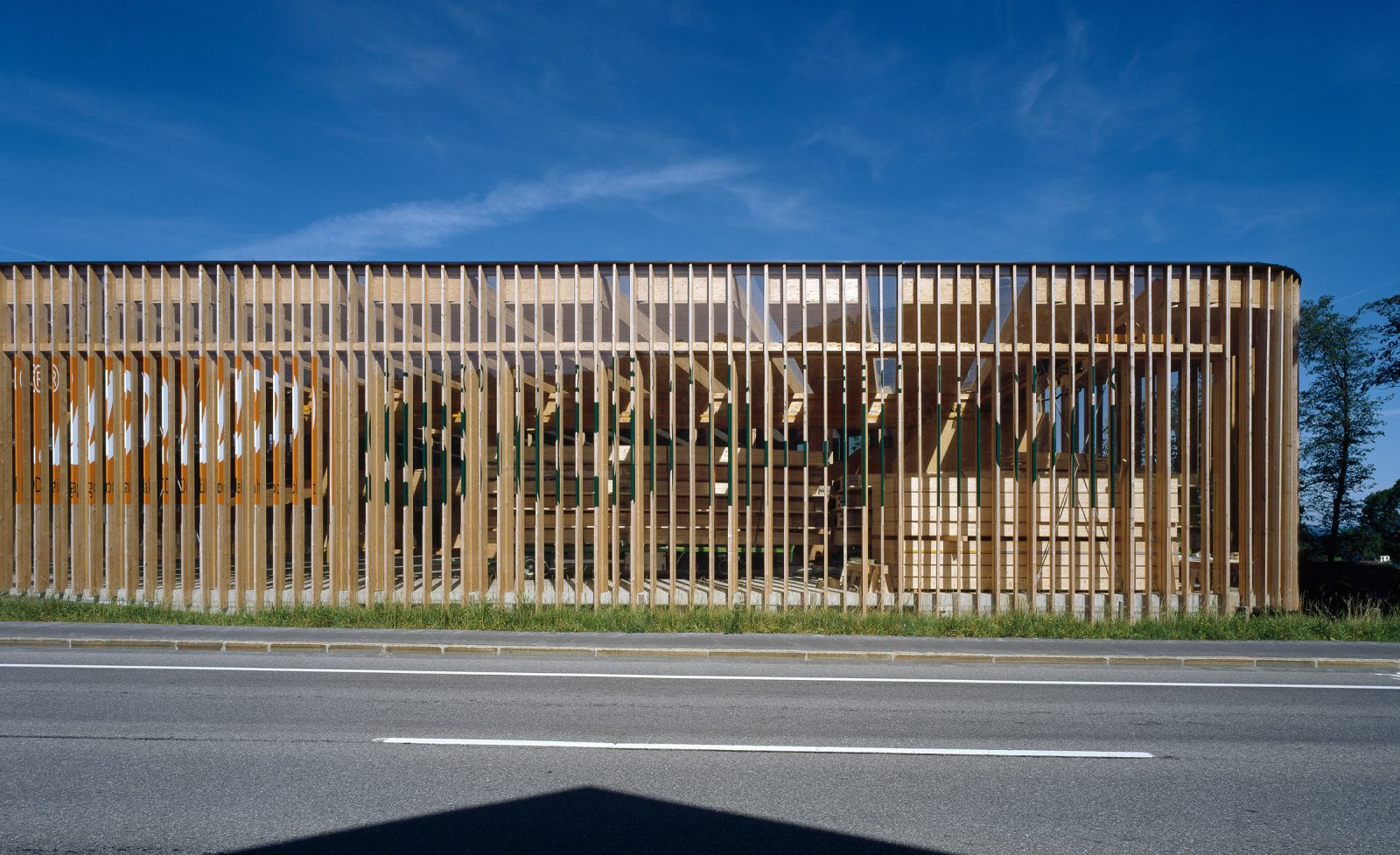

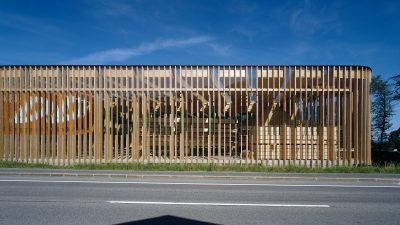

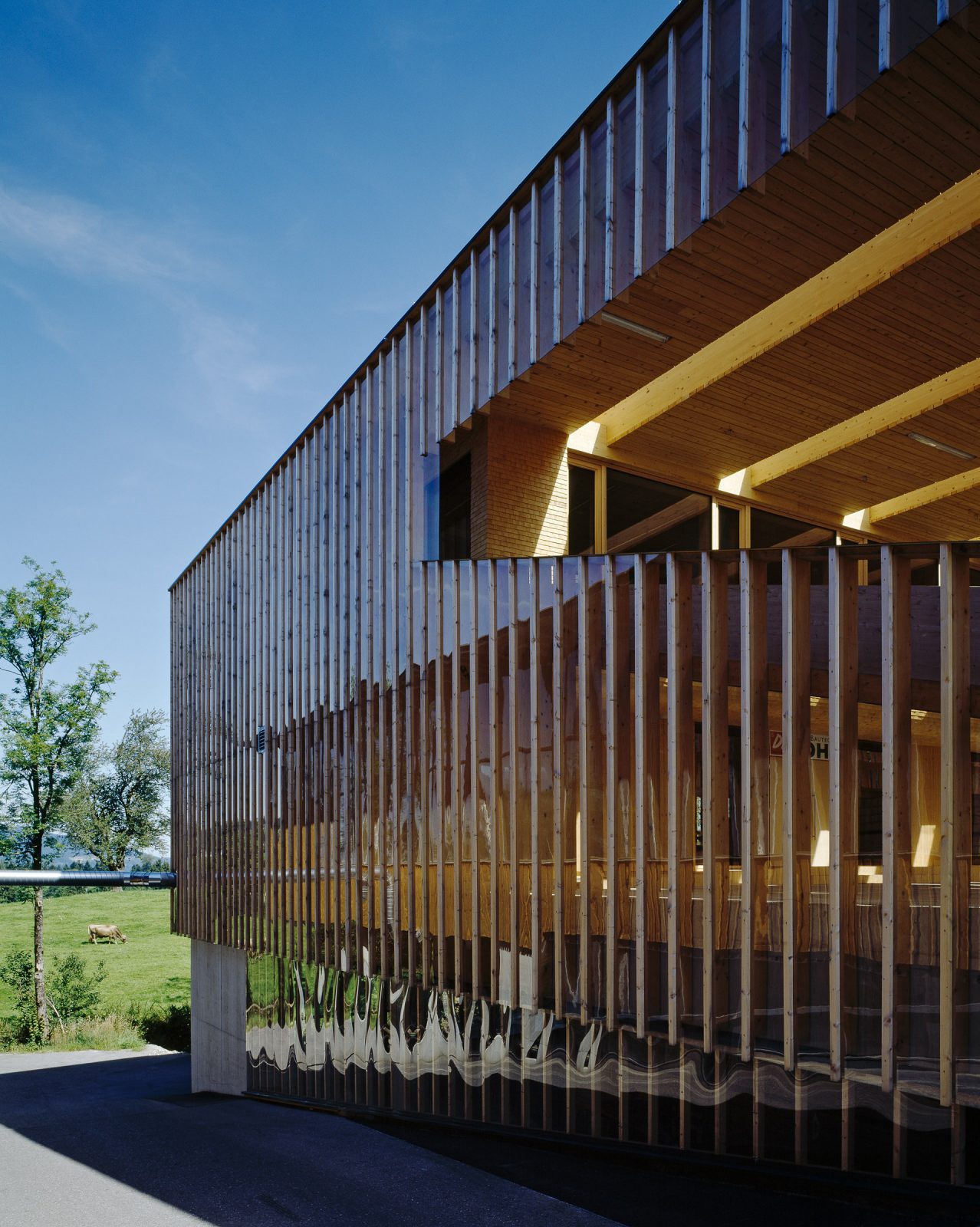

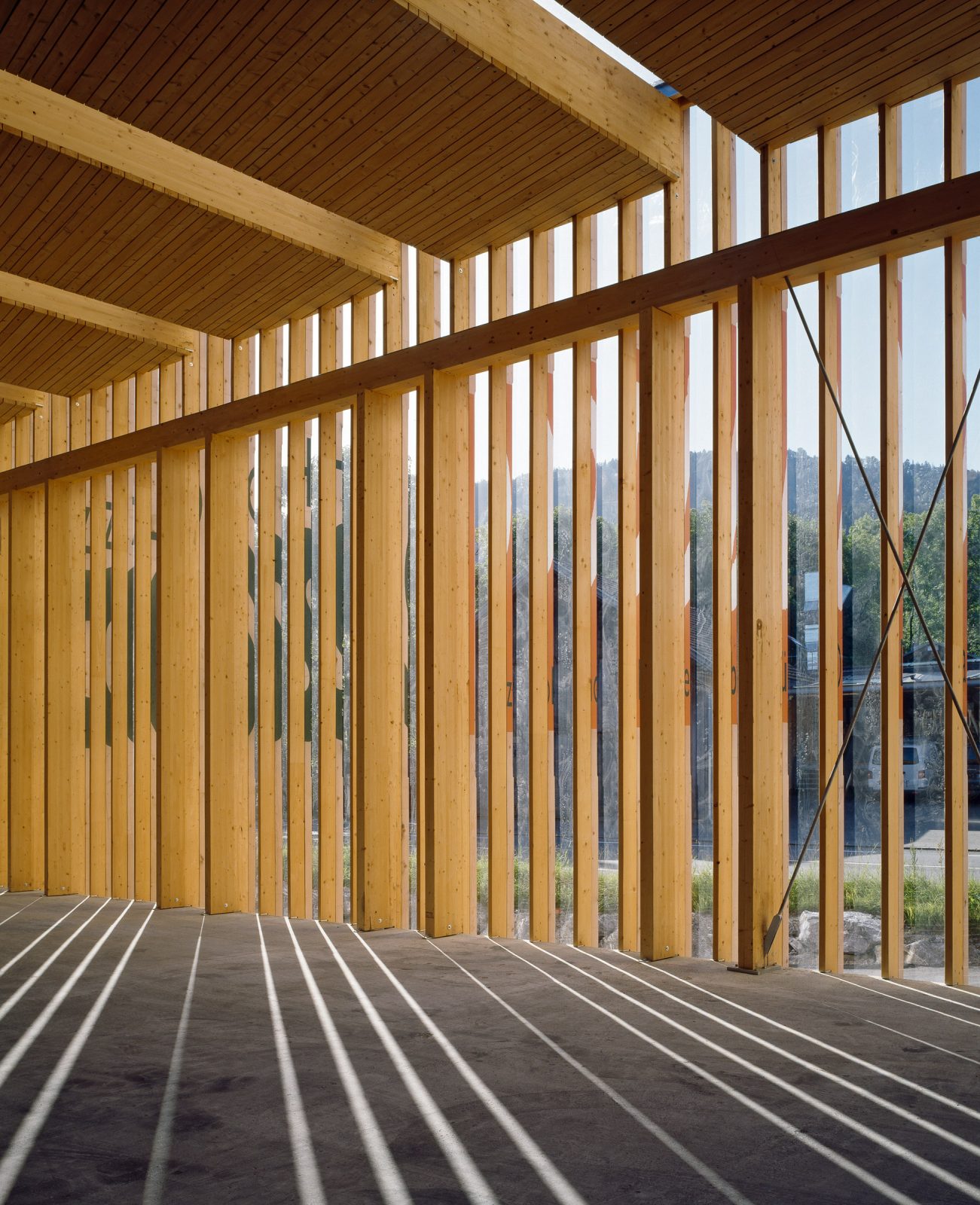

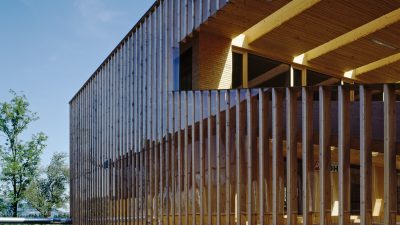

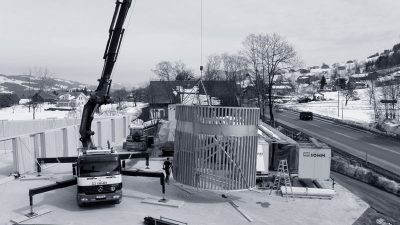

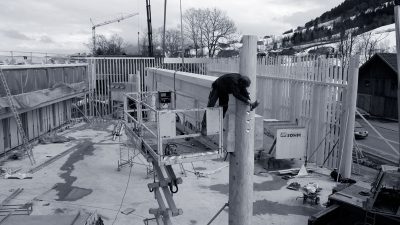

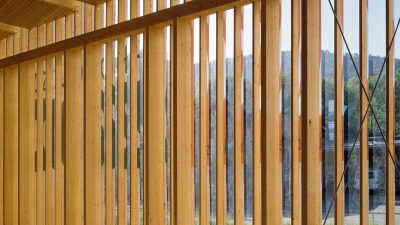

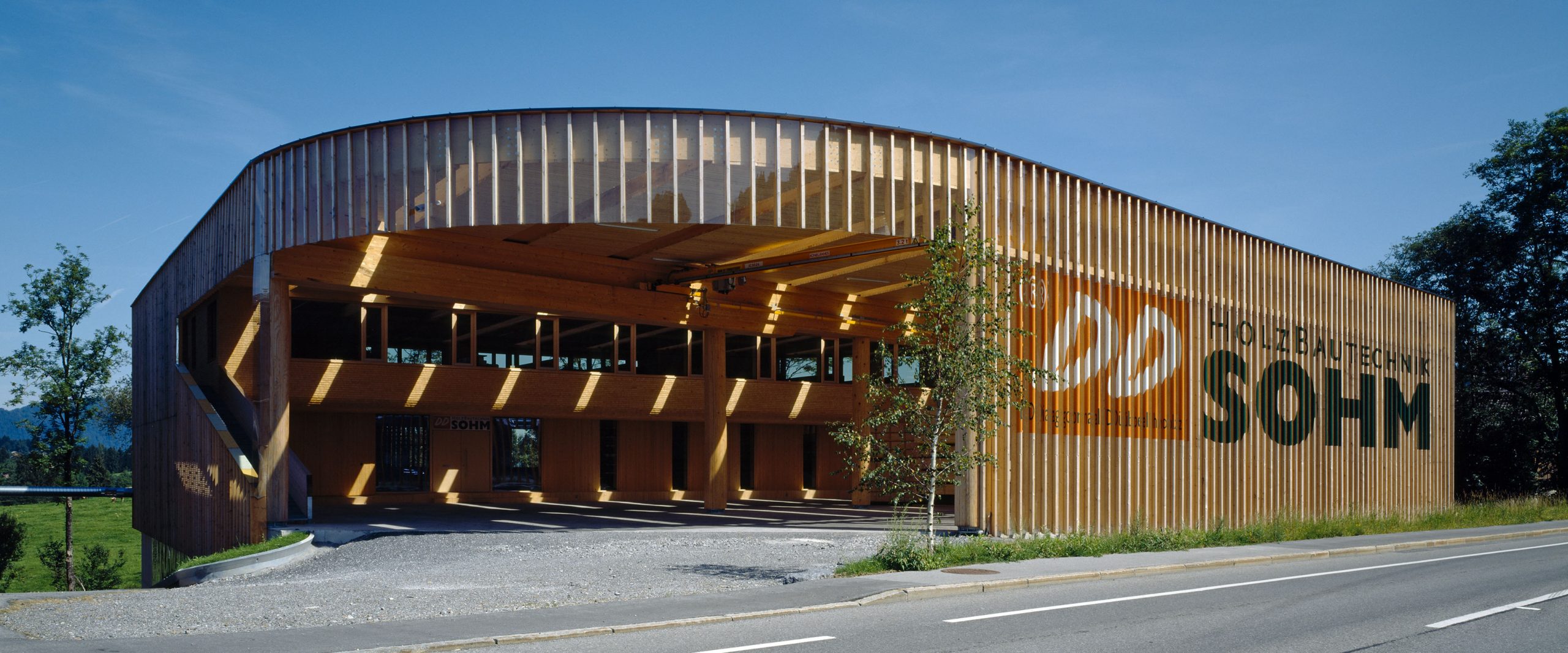

    A shell of vertically standing timber slats, with clamped Plexiglas, soothes the whole ensemble and reacts precisely to the predetermined geometry of the land. The rounded edges enhance the concept of ‘enveloping’.

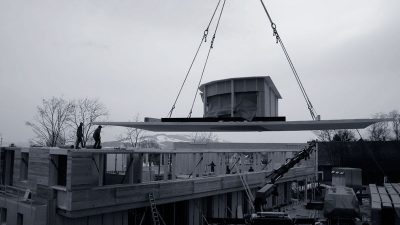

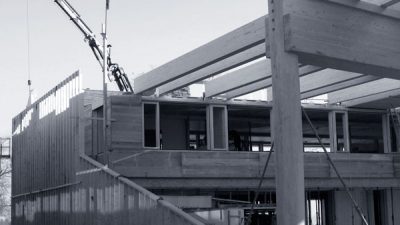

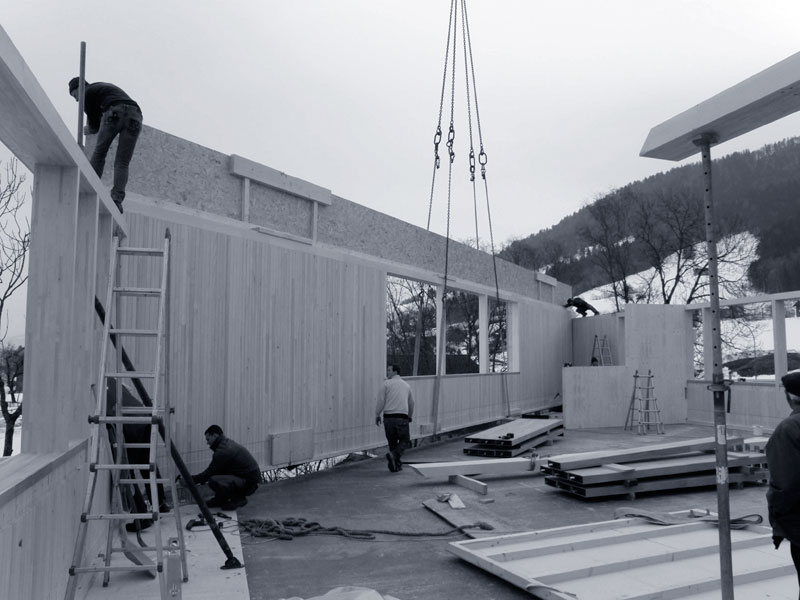

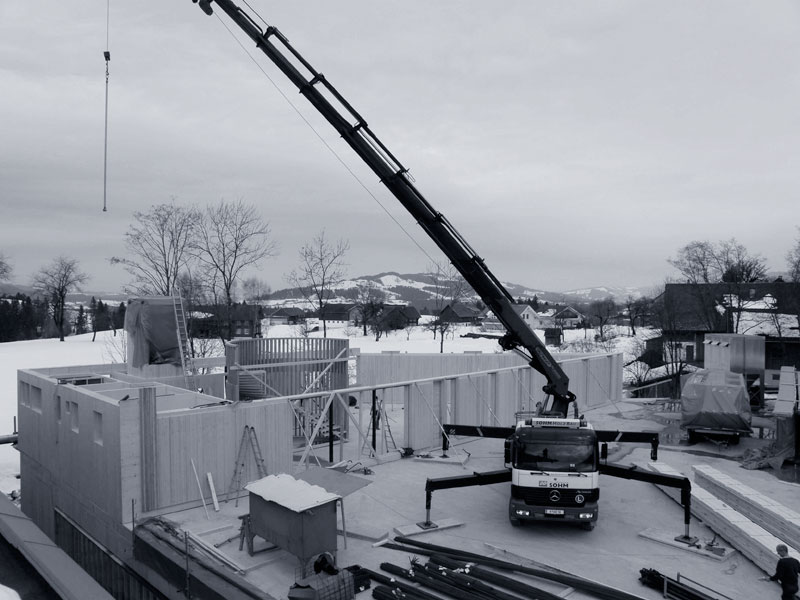

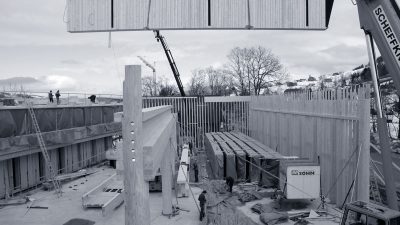

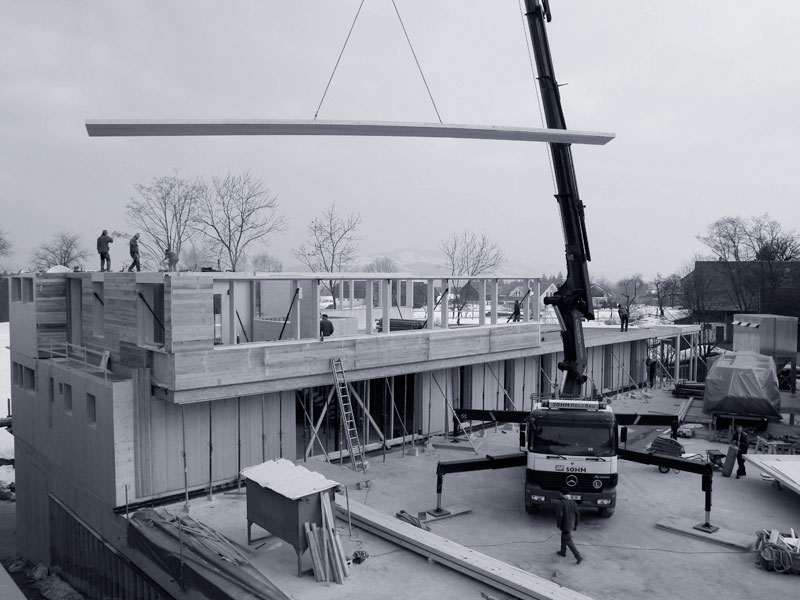

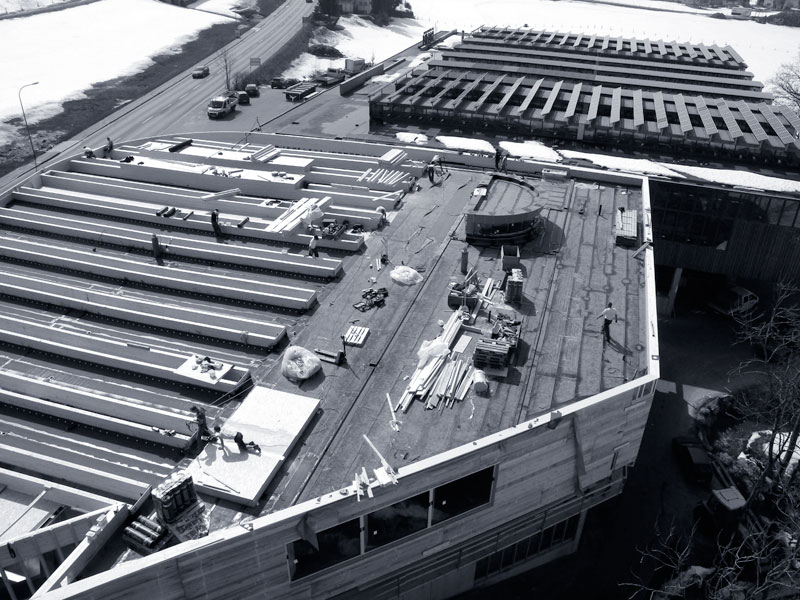

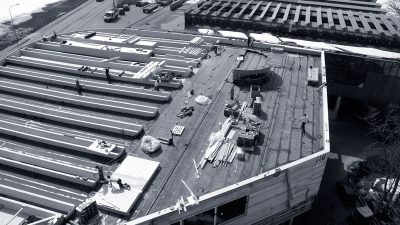

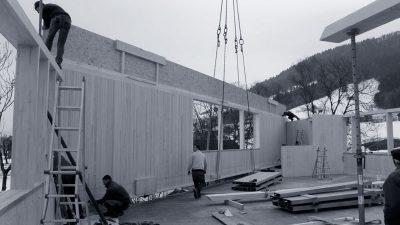

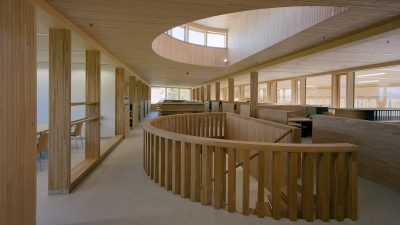

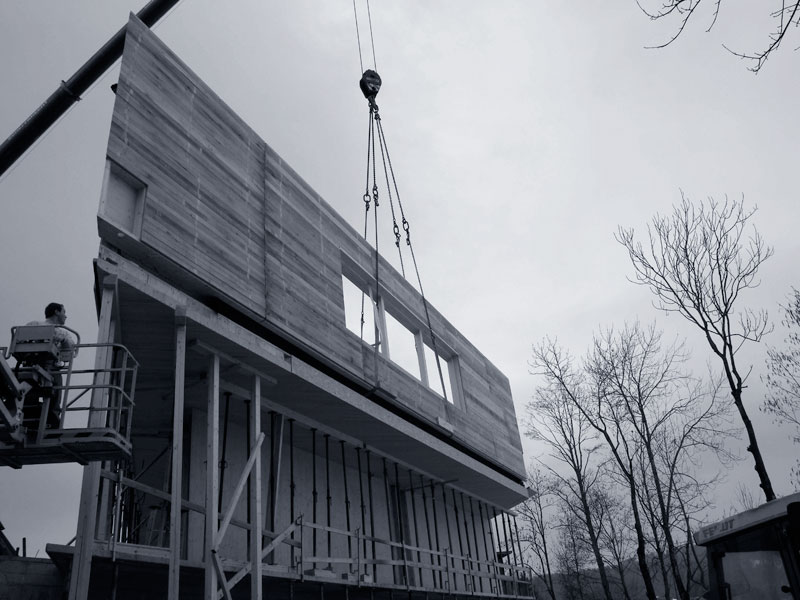

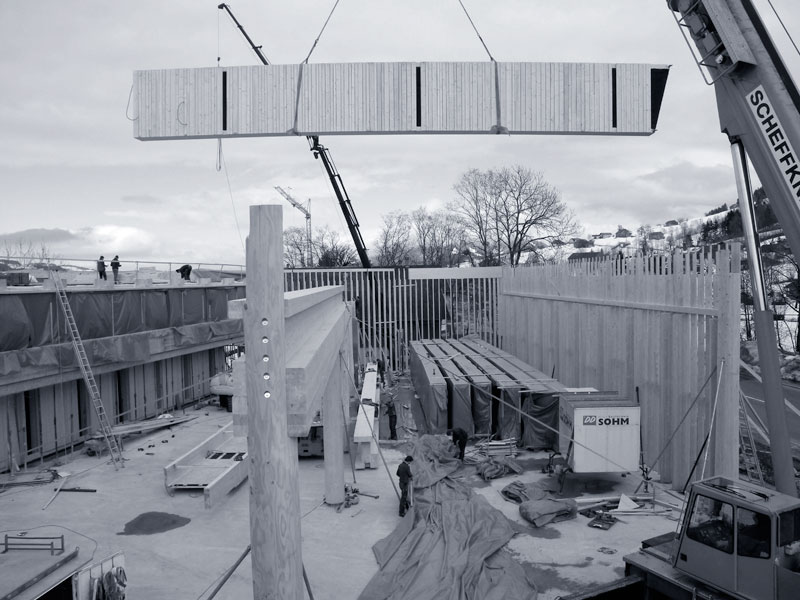

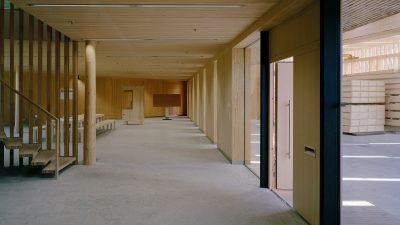

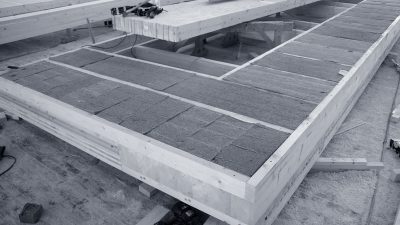

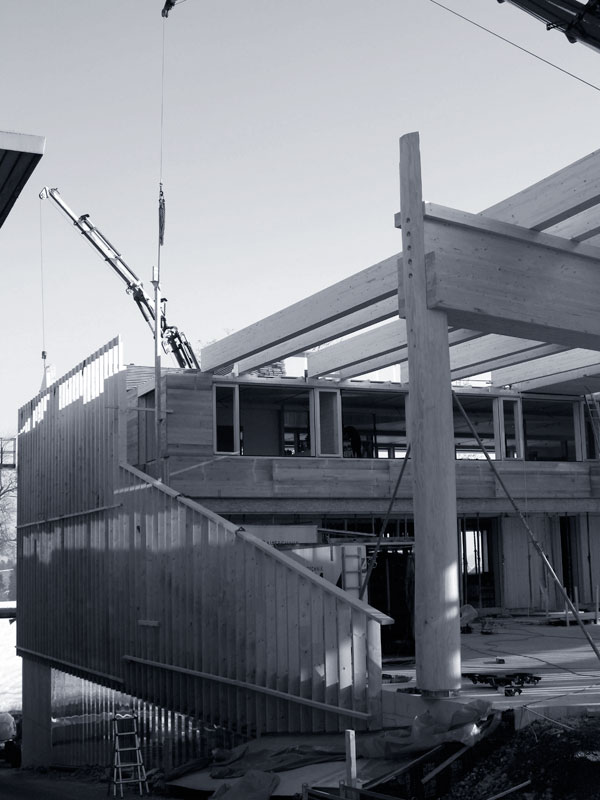

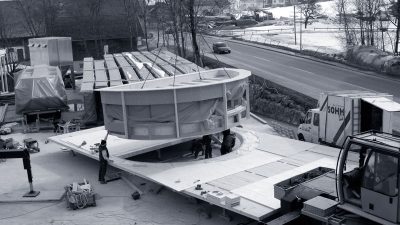

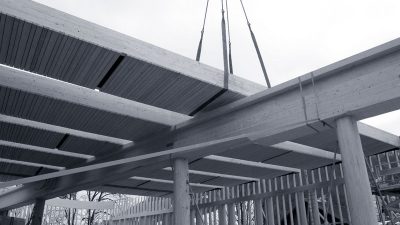

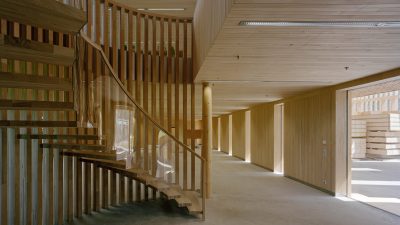

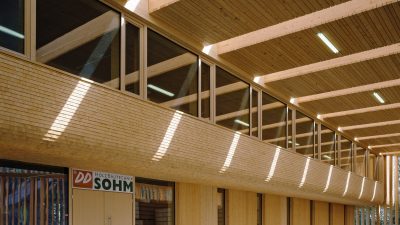

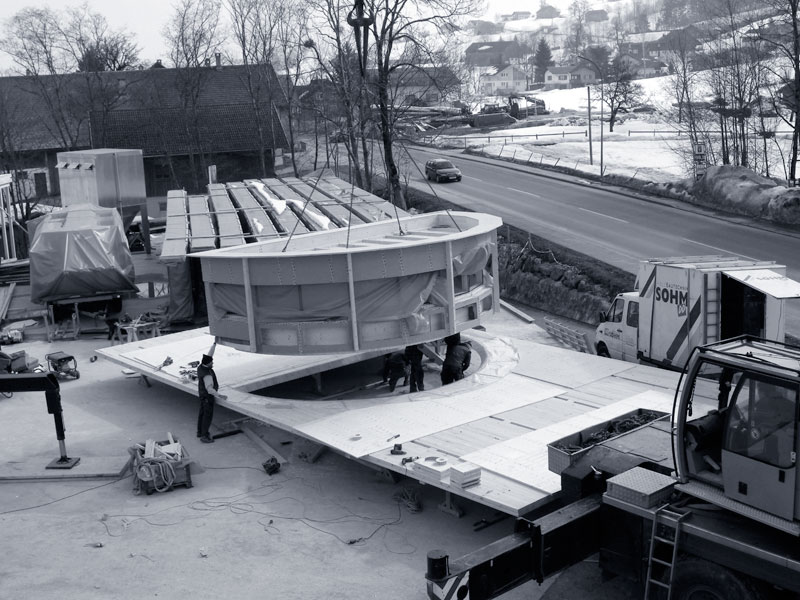

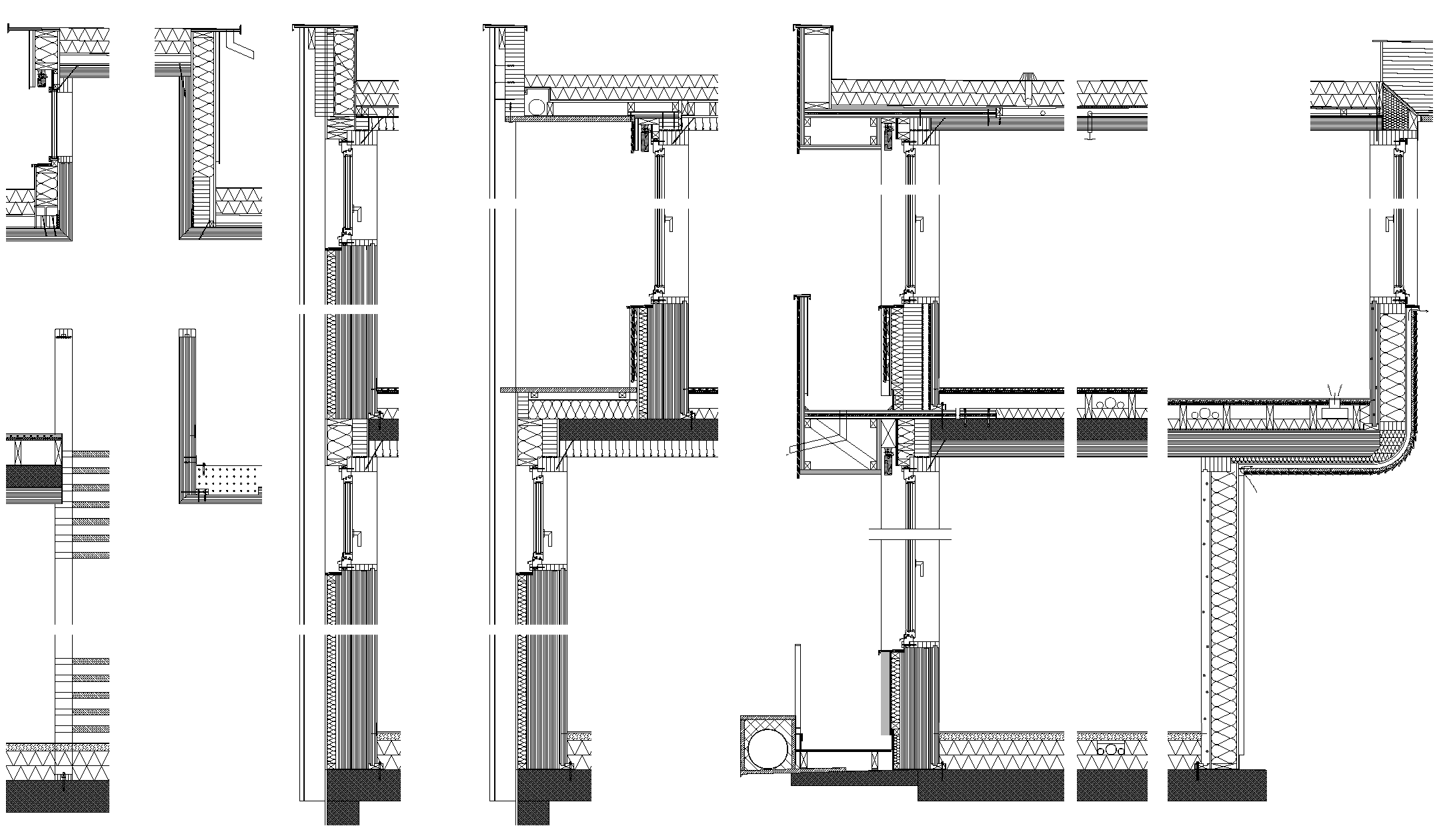

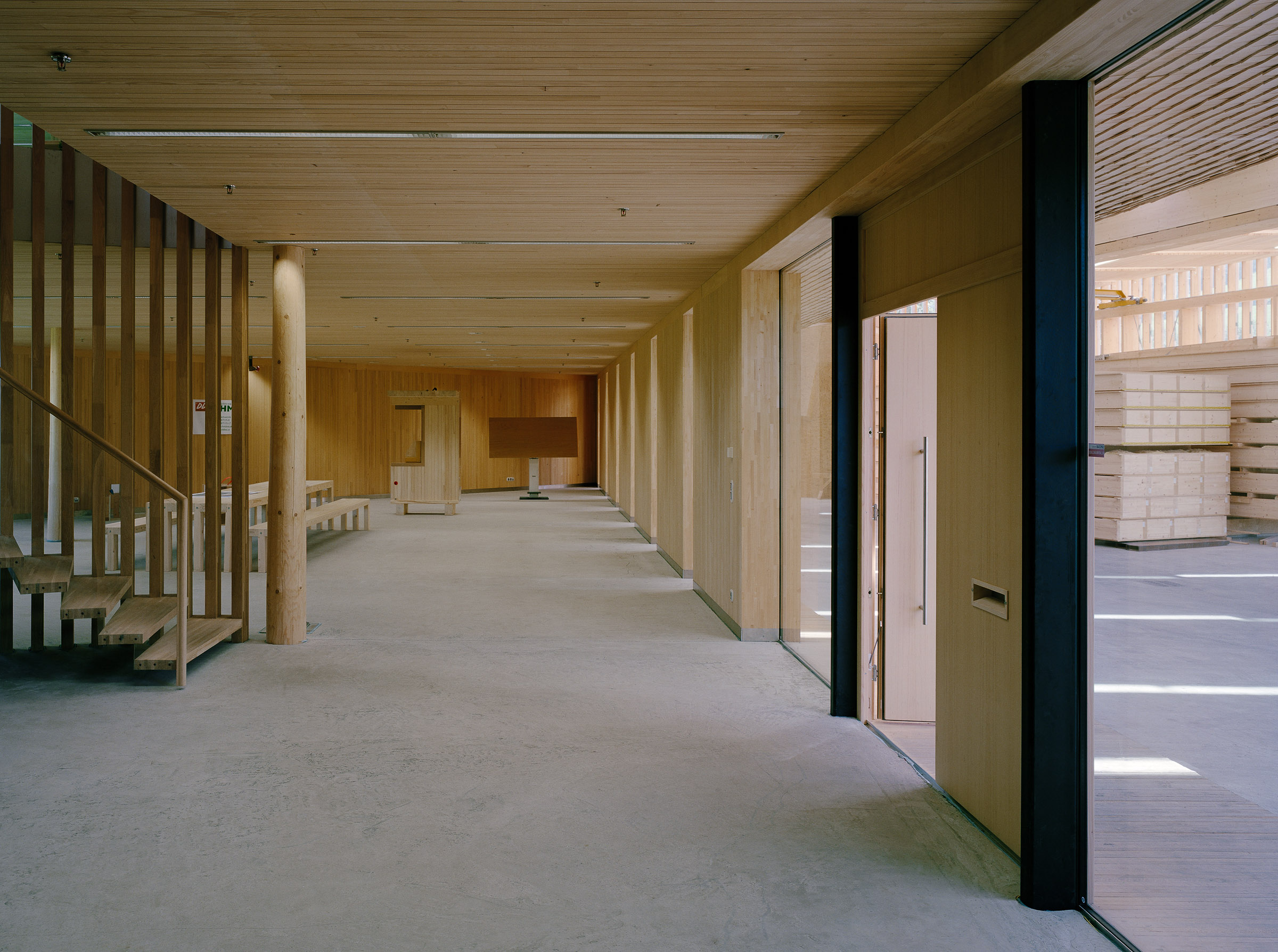

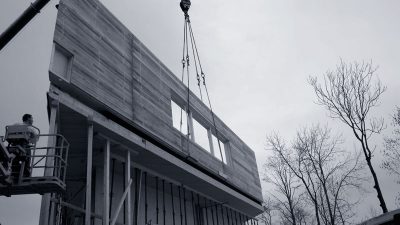

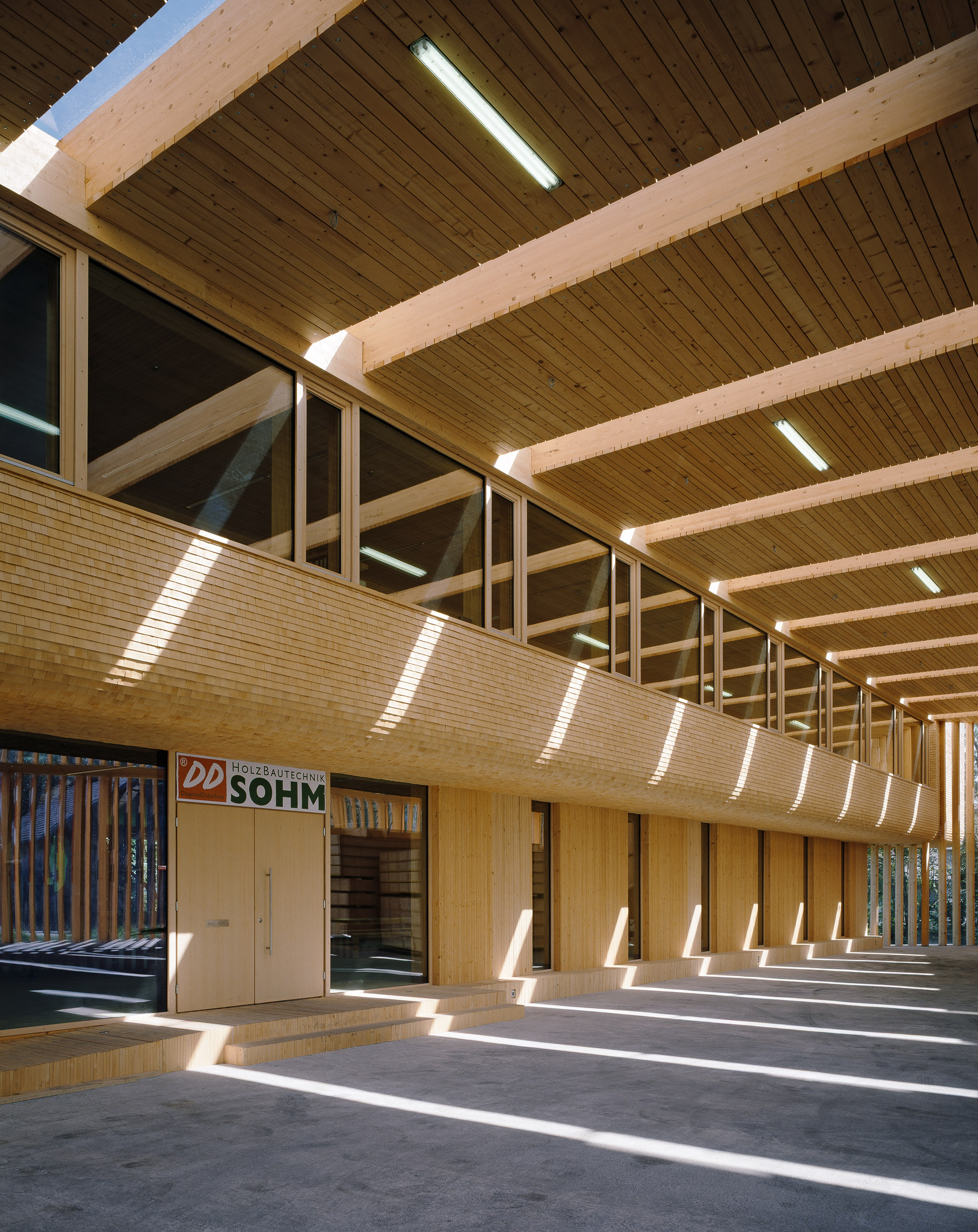

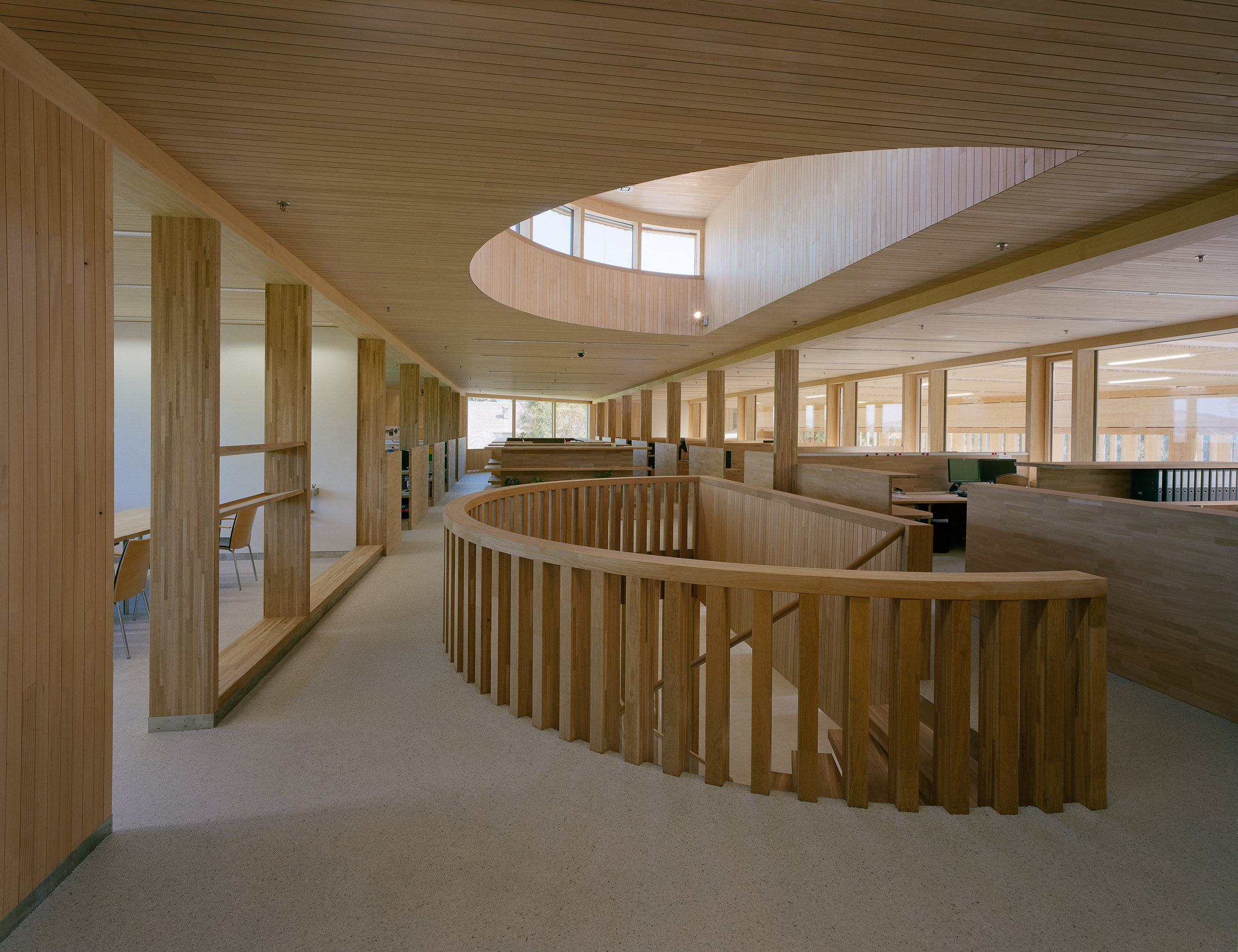

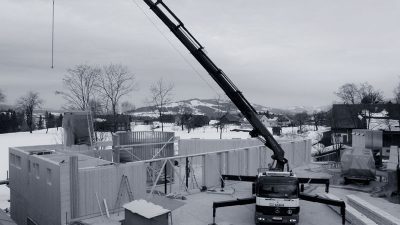

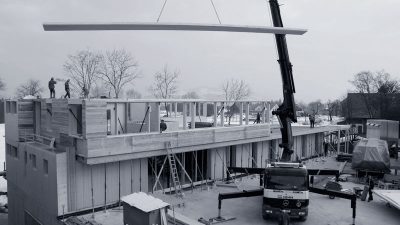

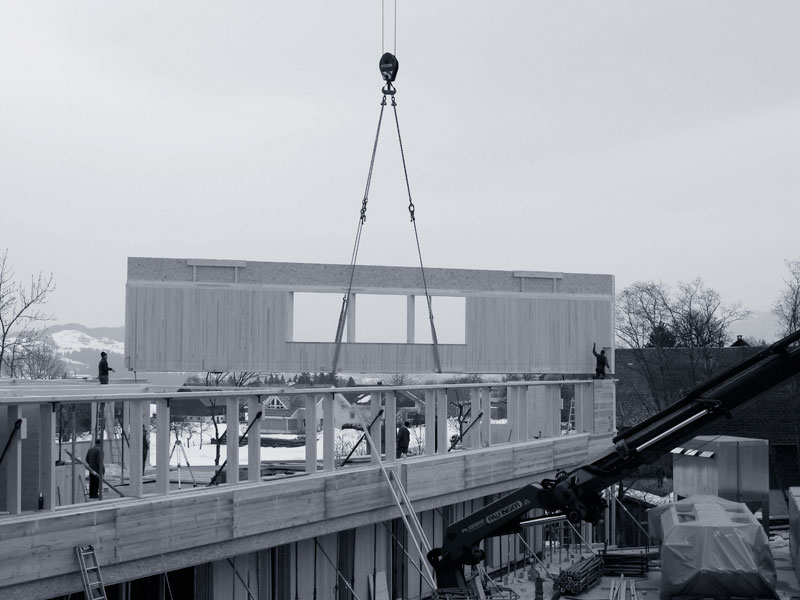

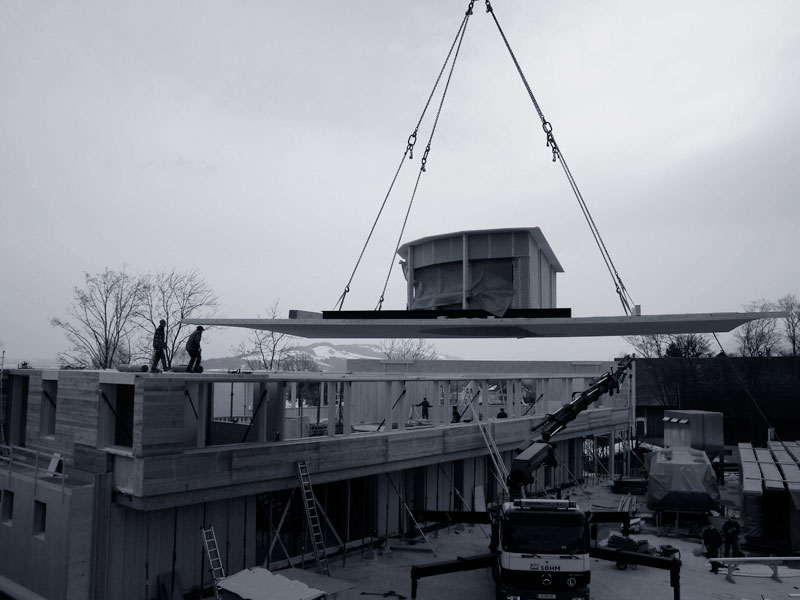

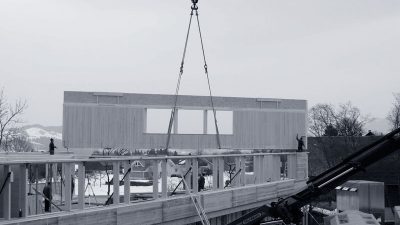

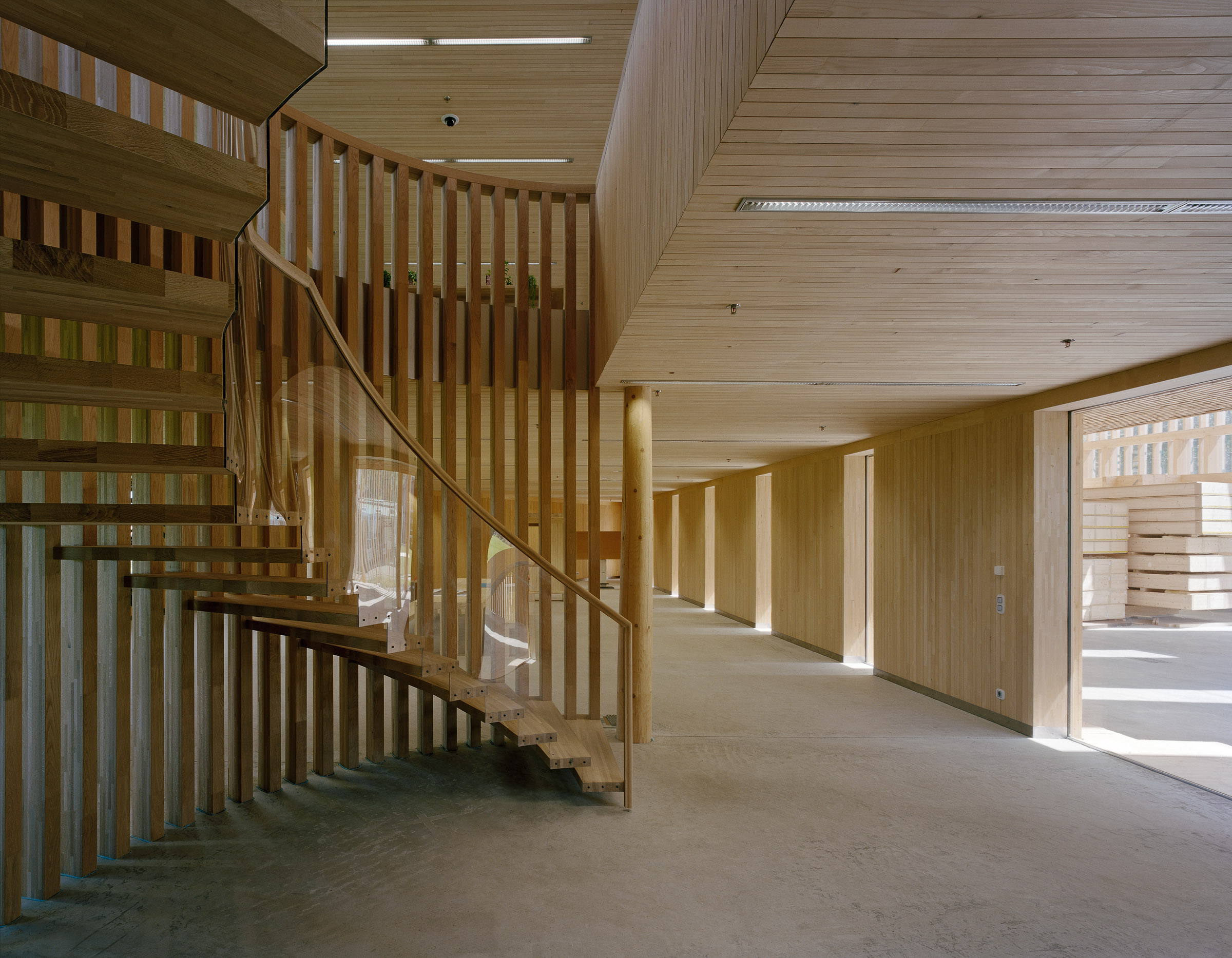

    The roof of the open hall rests on the office building, which is made completely out of timber and which is placed on a massive elevated ground level. Sohm produces anchoring timber elements. They are solid timber elements which are not bonded, but connected with diagonally drilled beech dowel pins. The office building is completely constructed with such elements which form the overall impression of the interior rooms. The natural finished timber without bonding guarantees a healthy working environment.
