Oberdorf 561, Sulzberg

Project Information

05_05

Builder-Owner
Morscher Bau- & Projektmanagement, Mellau

Location

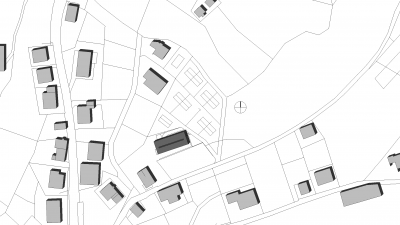

Sulzberg

Completion
2007

Project facts
n.b.ar. 1272 m², GFA 1461 m²,
GBV 4332 m³

Certification
Passive House

Project Phases
1 construction phase
2 construction phase

Rights
Text Hermann Kaufmann + Partner ZT GmbH,
Translation Bronwen Rolls

Photo Morscher Bau- und Projektmanagement

Project Stakeholders

Oberdorf 561, Sulzberg

Hybrid construction of a multi-family apartment building.

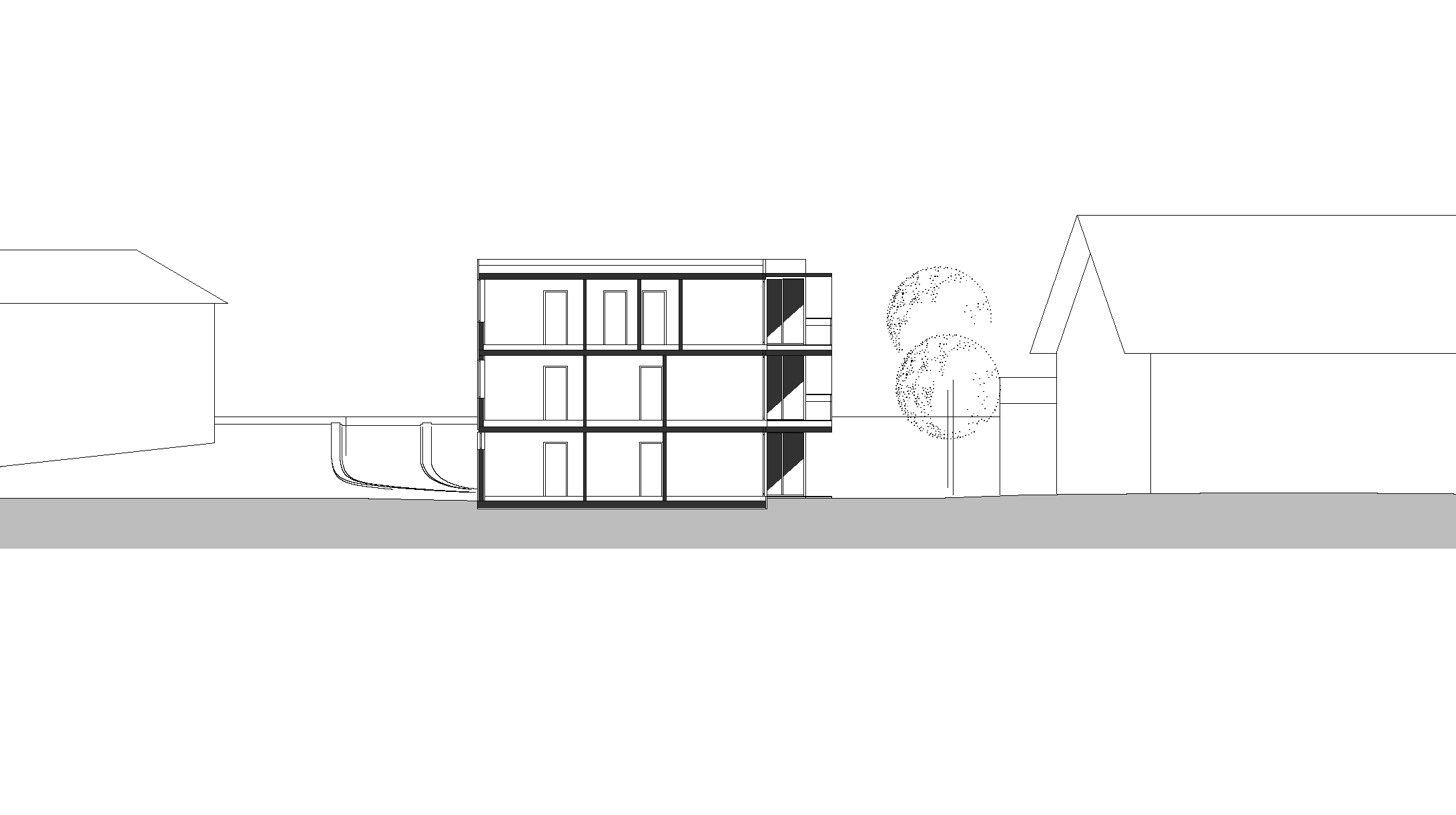

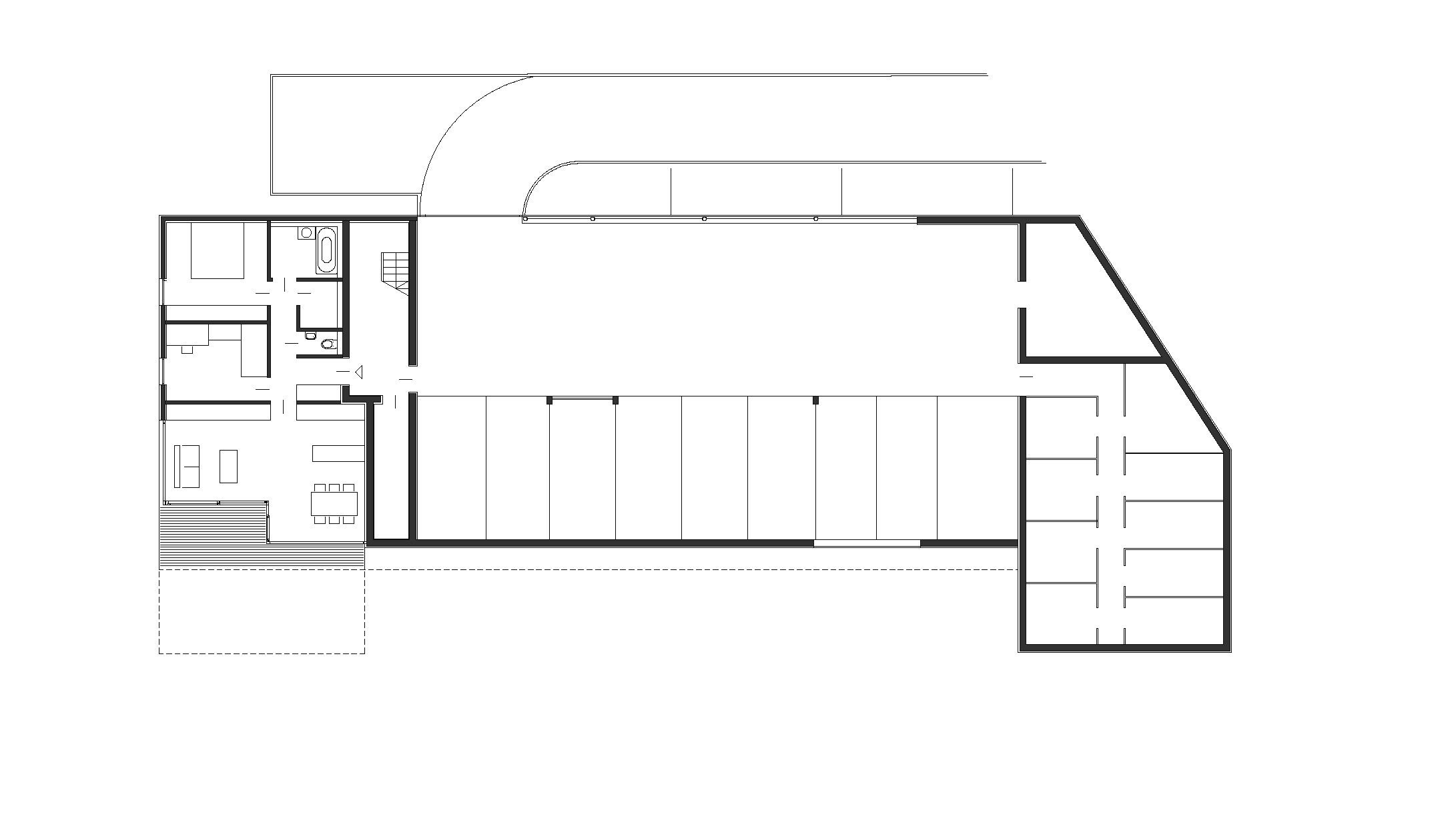

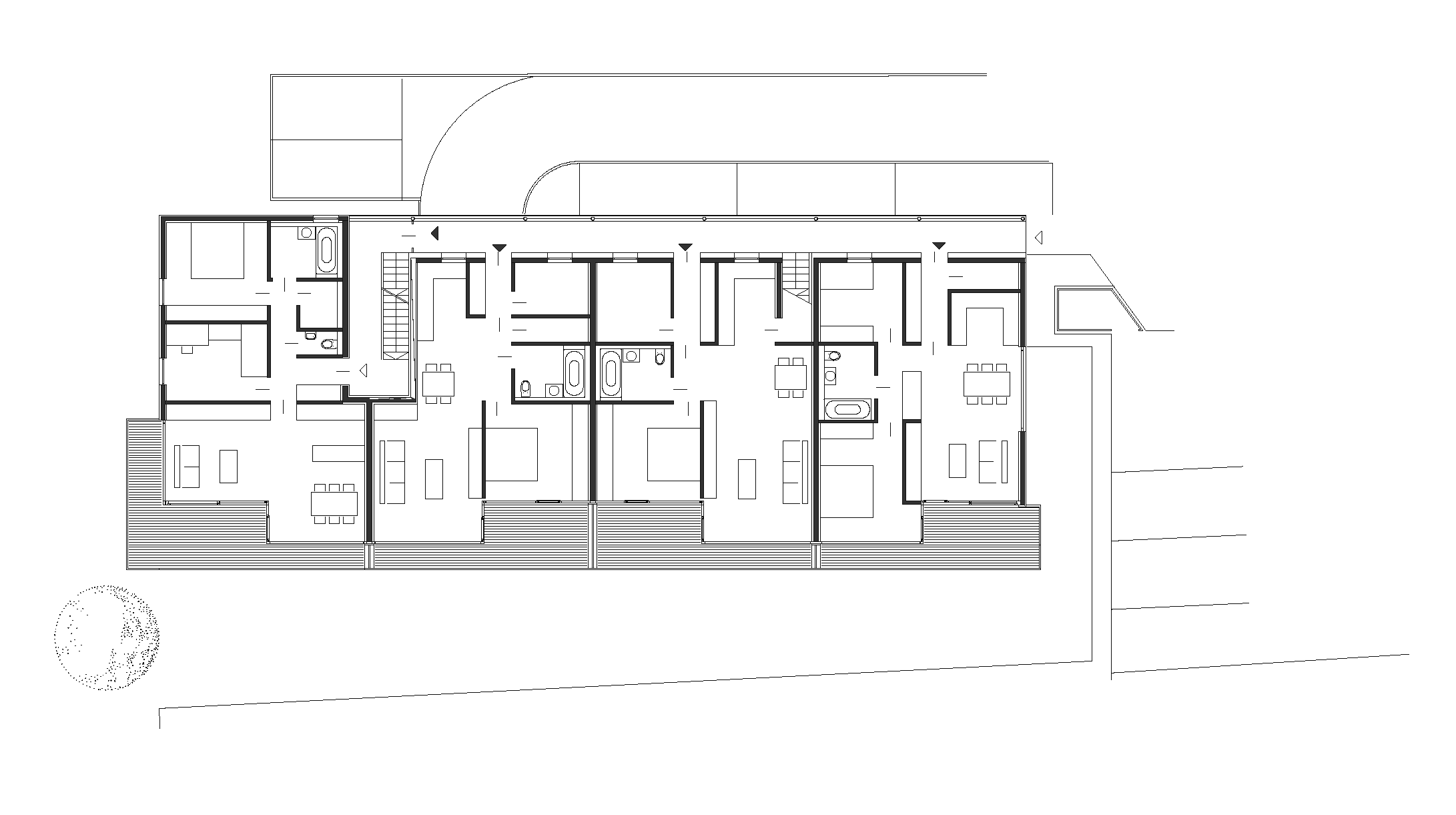

The building, consisting of 9 apartment units, is located on a  south facing slope. The natural gradient is exploited for the development of the underground car park, in which the cellar space and a west-facing apartment, with garden access, is located.

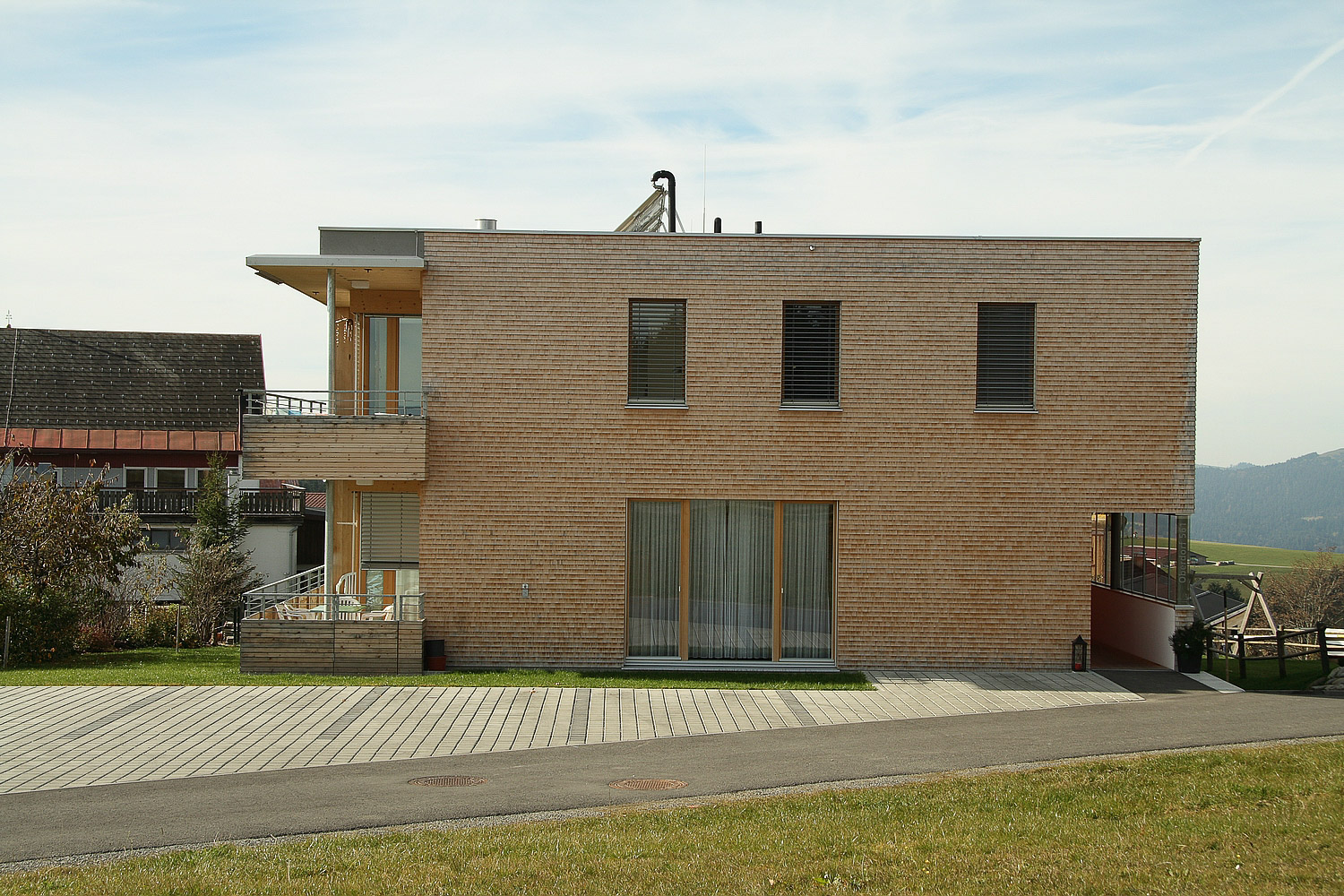

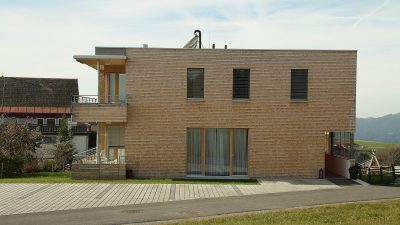

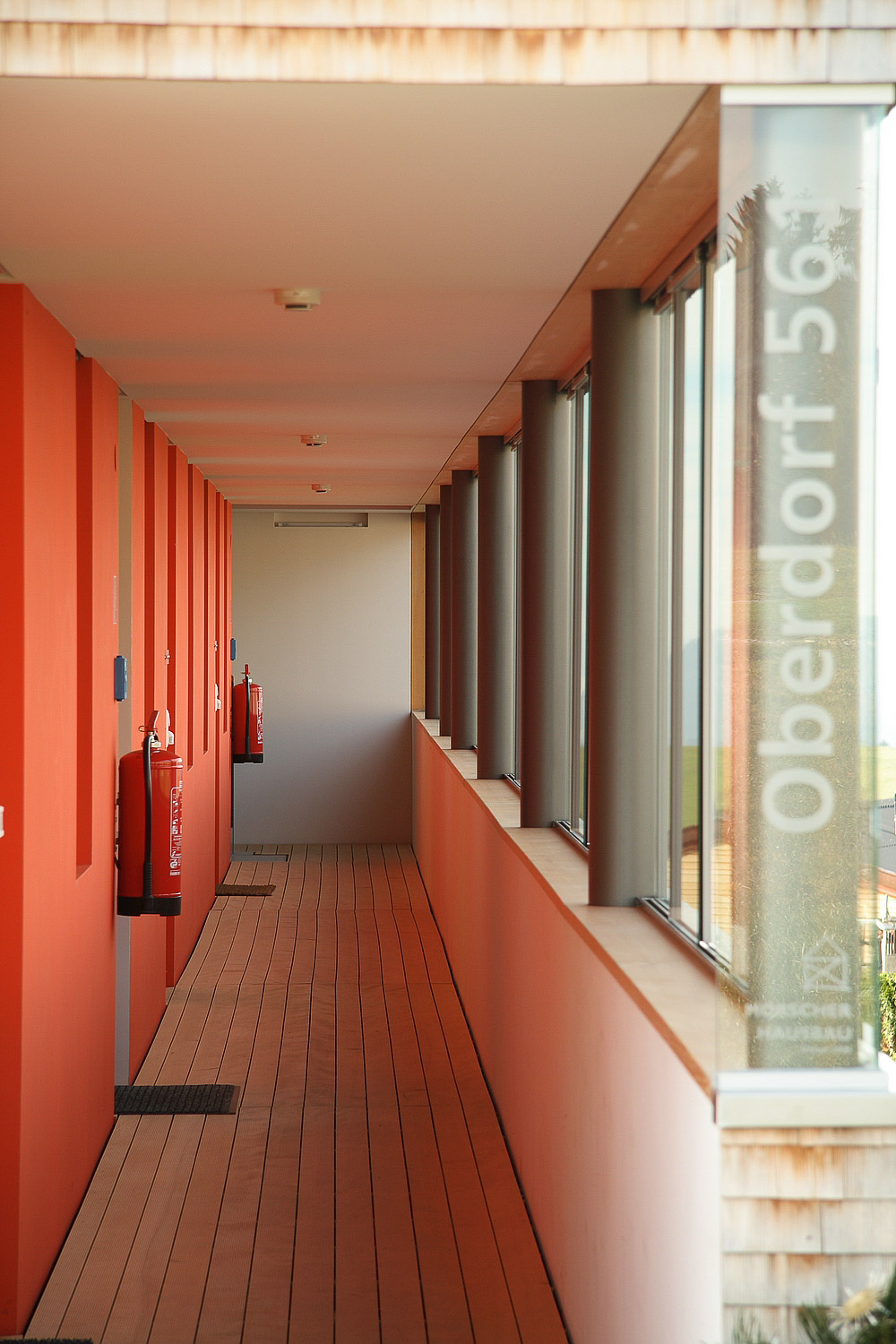

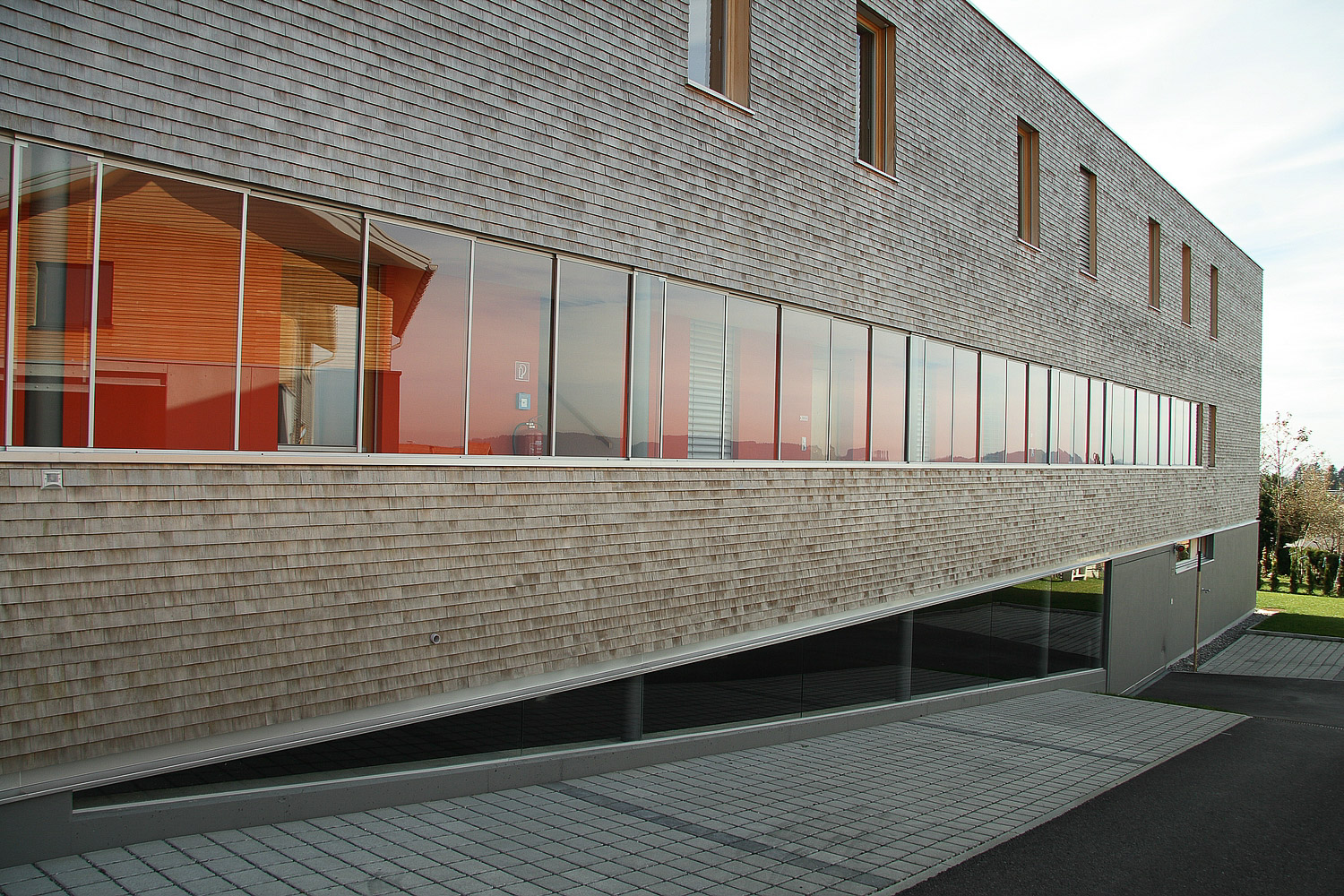

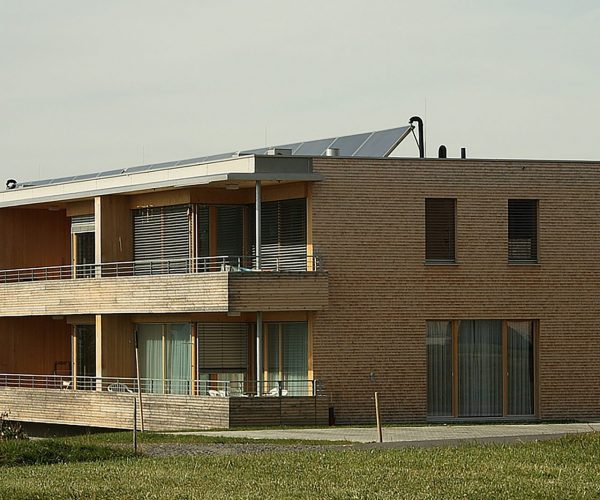

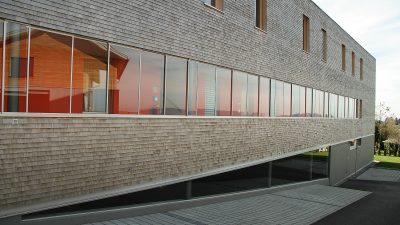

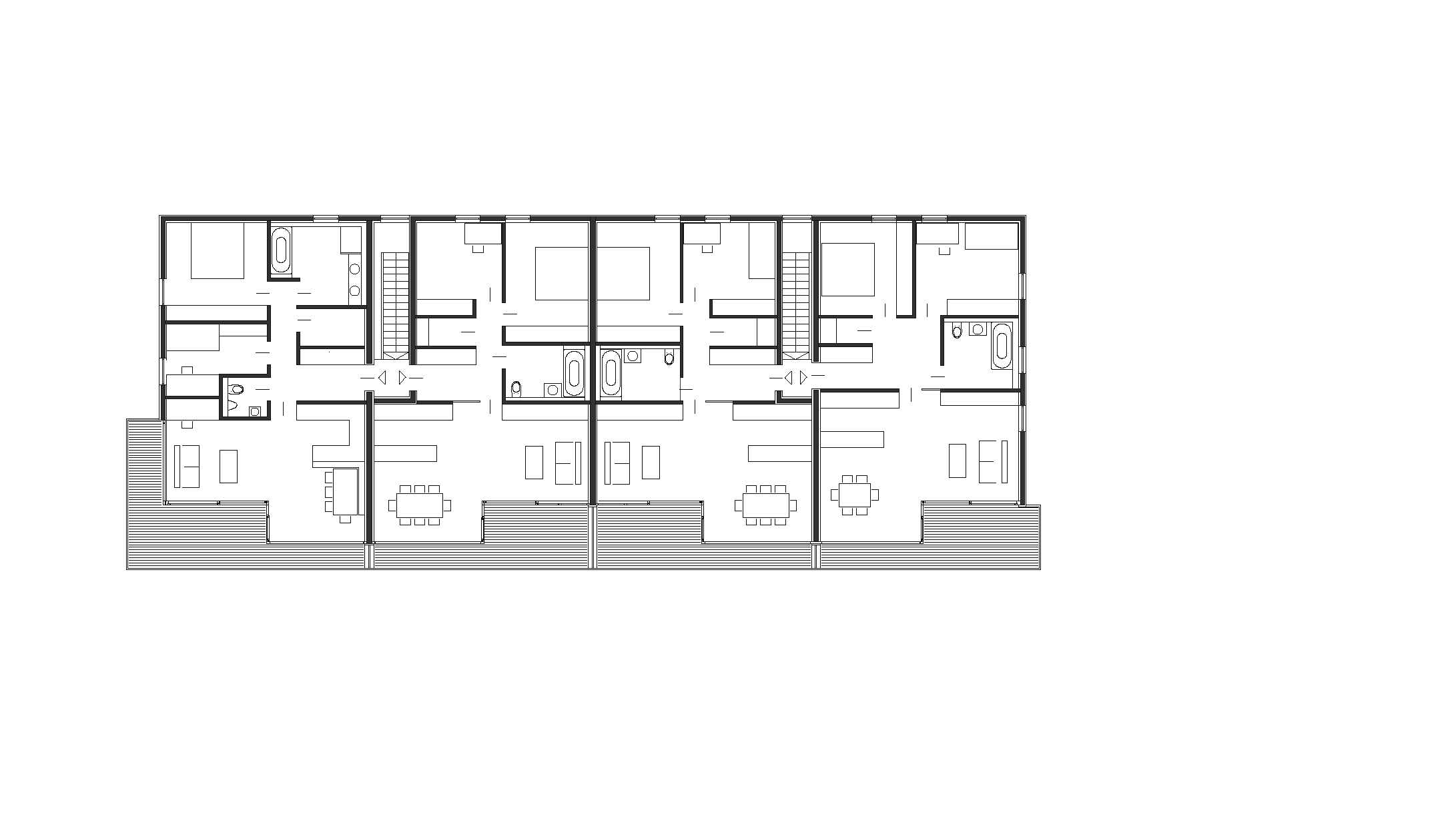

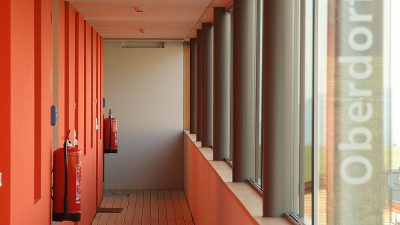

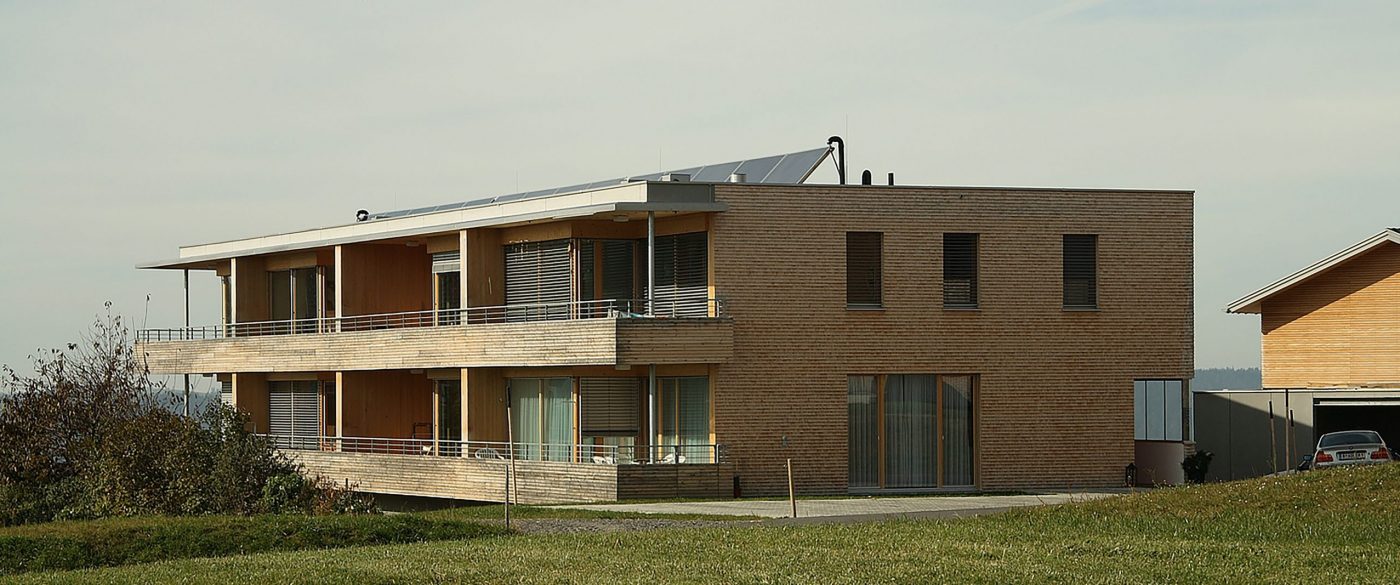

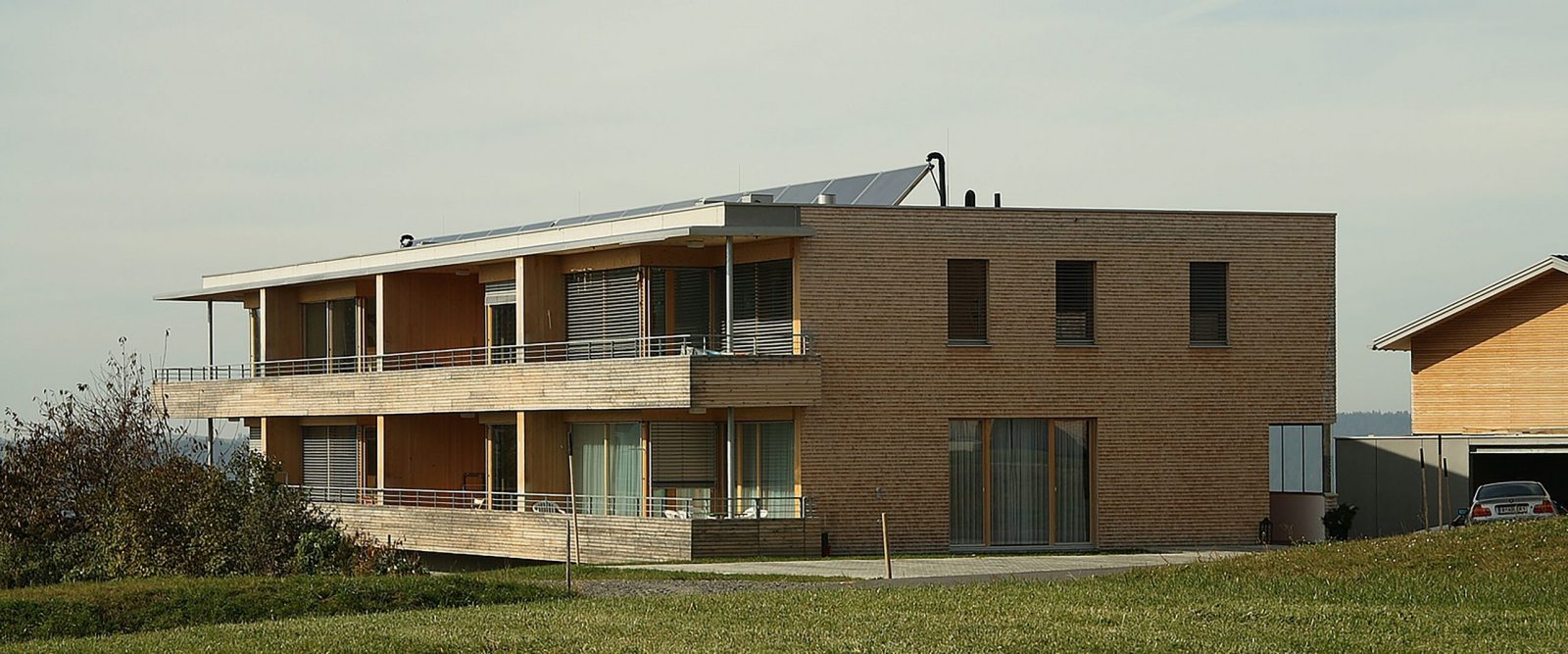

The 8 apartments on the upper floors are accessed via a pergola with right-angled staircases. All apartments are oriented to the south. The “soft” south facade stands in deliberate contrast by the restrained north prospective. The house has a concrete supporting structure, in combination with steel columns. The outer skin is made of prefabricated timber elements with natural shingles.
